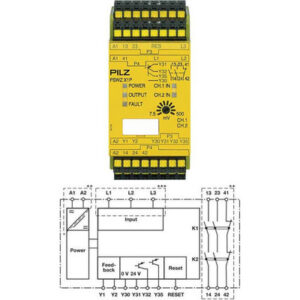

PSWZ X1P C, PILZ, Safety relay, 0,0075-0,5V/24-240VACDC
Single-channel, Automatic reset, Dual-channel · Supply voltage(V): 24,0 – 240 .
Description
Safety relay (standalone), inputs: Measuring inputs 1/3-phase motors, outputs: 2 N/O, 1 N/C, 2 SC, UB = 24 – 240 V AC/DC, UMmax = 690V, switching threshold 7.5 – 500 mV, width: 45 mm, plug-in spring-loadedterminals, standstill monitor, the device monitors the EMC voltage created during motor rundown.
SPECIFICATION
|
Manufacturer
|
PILZ | |
|
Type of module
|
safety relay | |
|
Manufacturer series
|
PSWZ X1P | |
|
Number of inputs
|
2 | |
|
Number of outputs
|
5 | |
|
Mounting
|
DIN | |
|
Operating temperature
|
-10…55°C | |
|
Electrical connection
|
spring-loaded terminals | |
|
Safety category
|
4 | |
|
Safety outputs
|
NO x2 | |
|
Auxiliary outputs
|
NC x1 | |
|
Signal output
|
transistor 24V DC x2 | |
|
IP rating
|
IP40 | |
|
Controlled parameter range
|
0.0075…0.5V | |
|
Body dimensions
|
101x45x121mm | |
|
Contacts electrical parameters
|
24V DC / 6A, 240V AC / 6A | |
|
Input 1 properties
|
2 channel | |
|
Application
|
standstill control |
Additional information
| Weight | 0,250 kg |
|---|---|
| Dimensions | 12,1 × 4,5 × 10,1 cm |
