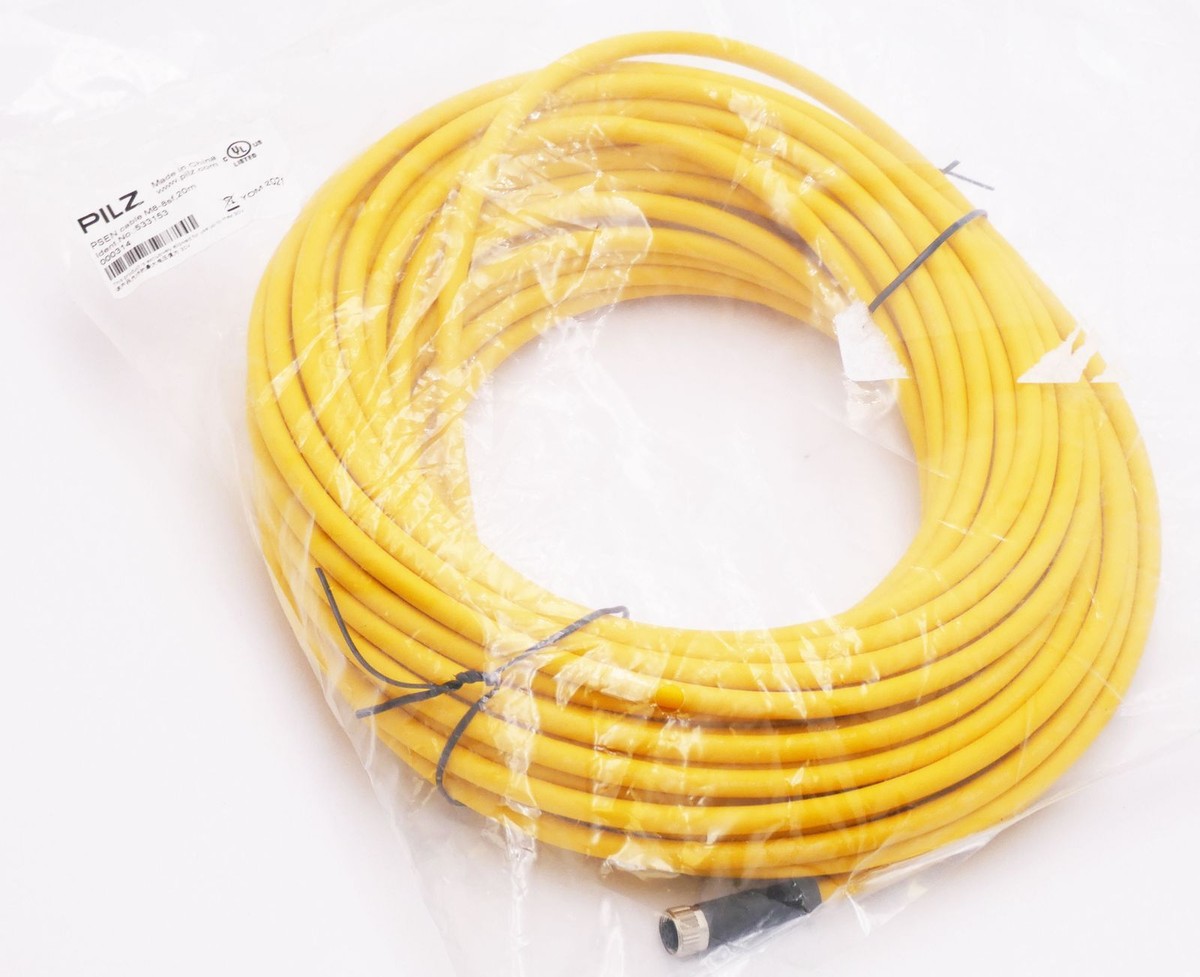

PSEN cable M8-8sf 20m, PILZ, Cable de conexión, PUR, amarillo, 8 pines, conector recto, M8, código A, 20 m

Description

Technical data

Electrical data

Rated current	1.5 A
Typ. conductor resistance K1	140 Ohm/km
Specific contact resistance K1	>= 7E+15 Ohm*cm
Specific conductor capacity K1	57.5pF/m

Environmental data

Ambient temperature	-40 – 80 °C
Pollution degree clear.&creep.	3
Protection type, housing	IP67

Mechanical data

Connector type 1	8-pin M8 female connector
Shape of connector type 1	straight
Matl threaded ring conn 1	GD-Zn, Ni
Contact surfaces material 1	Au
Material of sockets	CuSn
Cable material K1	Cu
Insulation material cable K1	PP cold resistance
Cable type K1	LiF9Y11Y
Length cable	20 m
Colour cable insulation 1	Yellow, similar to RAL 1003
Housing colour	Black
Material of cable insulation 1	TPU / TPE-U PUR
Trailing capability of cable 1	yes
Bend radius (when laying) K1	5 x Ø
Max. outside diameter cable K1	5.7 mm
Conductor cross section	0.14 mm²
Cable cross section AWG K1	26
Stranding K1	8 cores round cotton filler
Shielding K1	no
Number of conductors	8
Approvals for cable K1	UL AWM-Style 20233 UL/CSA
Approvals for connector 1	UL 94 HB
Halogen-free	yes
Oil resistance	resistant
Flame resistance	CSA FT-2 UL 1581, Cable Flame
Housing material	PUR
Torque interlocking screw	0.4 Nm
Net weight	693 g
Gross weight	696 g

Mas Información?

Additional information

Weight	0,789 kg
Dimensions	200 × 8,0 × 8,0 cm
