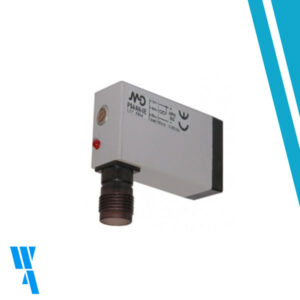

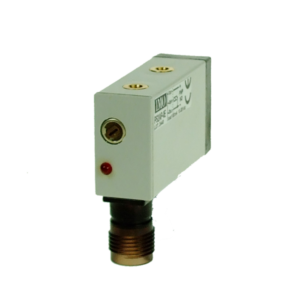

PS2/AP-0E, MICRO DETECTORS, Sensor fotoeléctrico, difuso 100 mm NO/PNP conector M12

Description

DC MINIATURIZED CUBIC PHOTOELECTRIC SENSORS

TECHNICAL FEATURES

Detection properties

Nominal sensing distance 100mm

Thermal drift of Sr ≤ 10% Sr

Repeat Accuracy ≤ 5%

Sensitivity adjustment Trimmer

Application

Function Principle Diffuse reflection (short distance, ≤200mm)

Optic position Axial

Outputs

Output type PNP NO

Output Function NO

Switching frequency 100Hz

Response time 5ms

Electrical data

Operating Voltage 10…30VDC

No-Load supply current ≤ 30mA

Load current ≤100mA

Leakage current ≤ 10μA @ Vmax

Output voltage drop ≤1,2V@Iload=100mA

Max ripple content ≤10%

LED indicators red (output state)

Time delay before availability ≤200ms

Short-circuit protection Yes

Reverse Polarity Protection Yes

Emission LED Infrared (880nm)

Interference to external light 3000lux Incandescent Lamp, 10000lux
