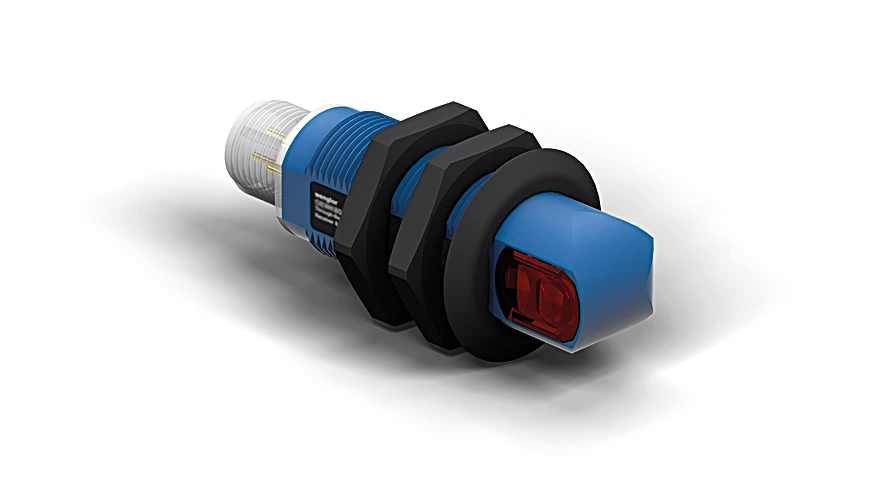

OLWK503A0002, Wenglor, RETRO-REFLEX SENSOR, UNIVERSAL, 5000MM RANGE, 700HZ, M12 X 1, IP67
Description
Resumen de características
Ajustador de distancia de conmutación
Detección de objetos brillantes
Tecnología de montaje inteligente e inclusiva
Instalación sencilla
Mínimo espacio de instalación
Downloads
Optical Data
Range 5,000 mm
Reference Reflector/Reflector Foil RQ100BA
Switching Hysteresis < 15 %
Light Source Red Light
Polarization Filter yes
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 5 °
Two-Lens Optic yes
Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 700 Hz
Response Time 714 µs
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Mechanical Data
Setting Method Potentiometer
Housing Material Plastic, ABS/GF
Degree of Protection IP67
Connection M12 × 1; 4-pin
Weight 16 g
Mas Información?
Additional information
| Weight | 0,230 kg |
|---|
