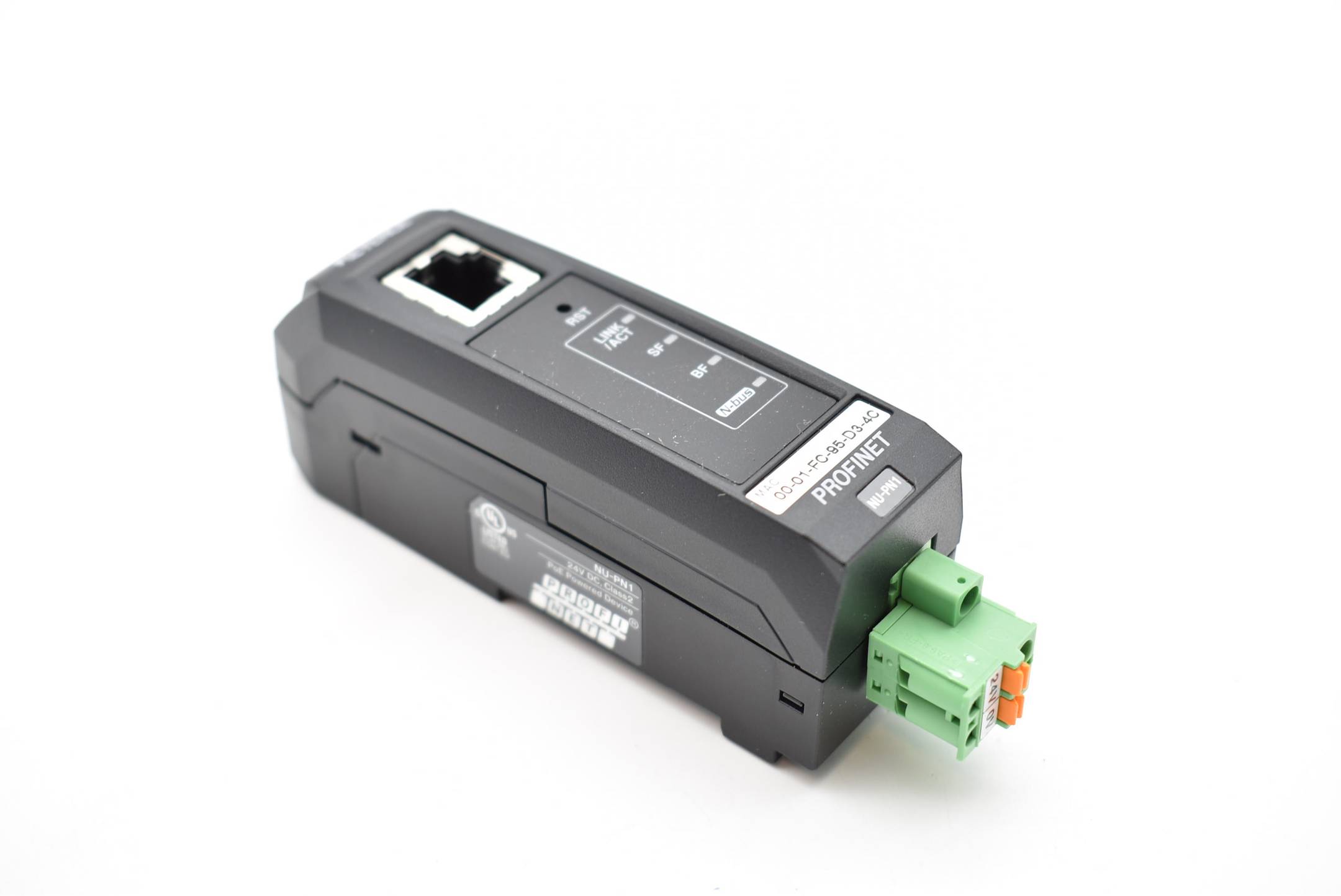

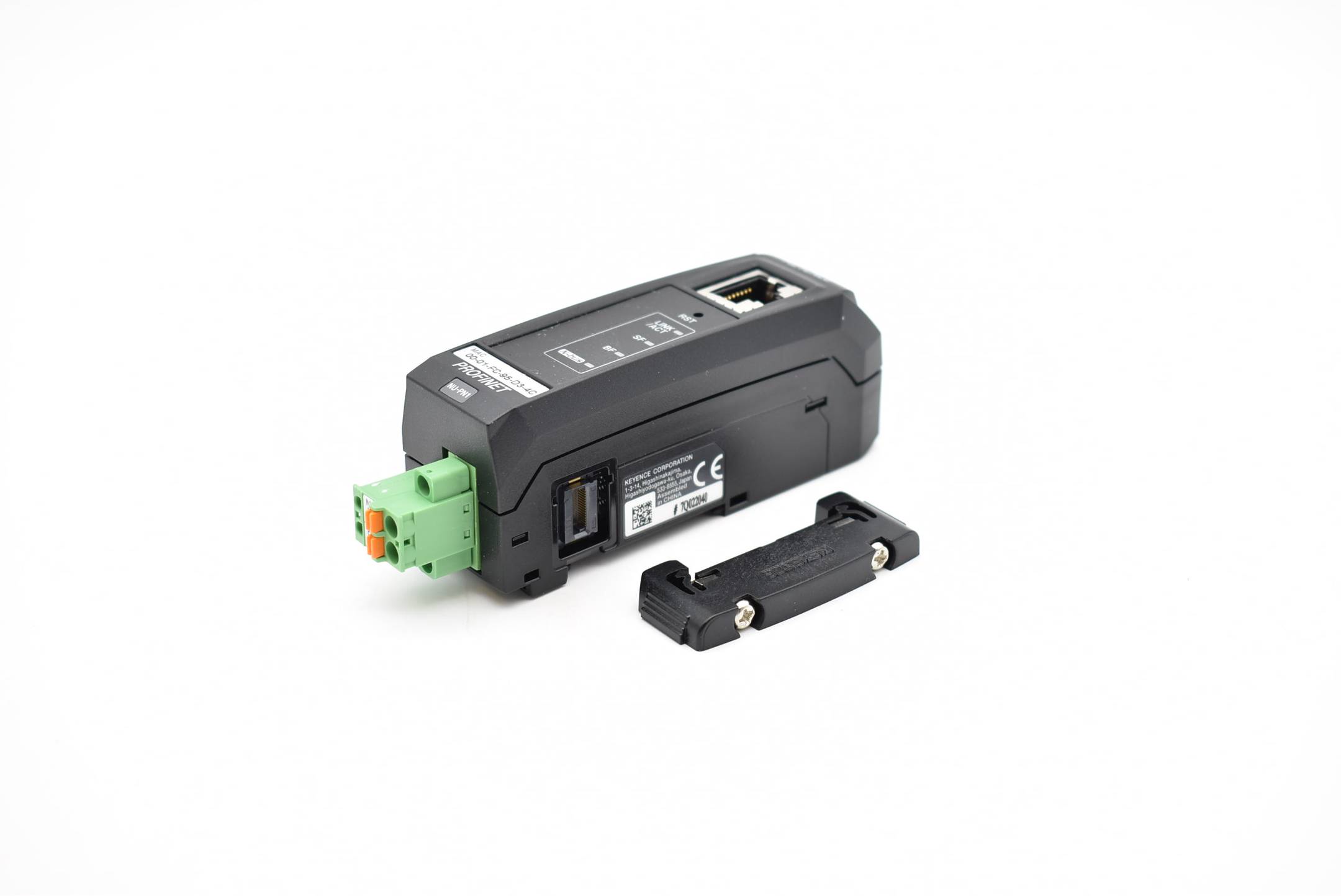

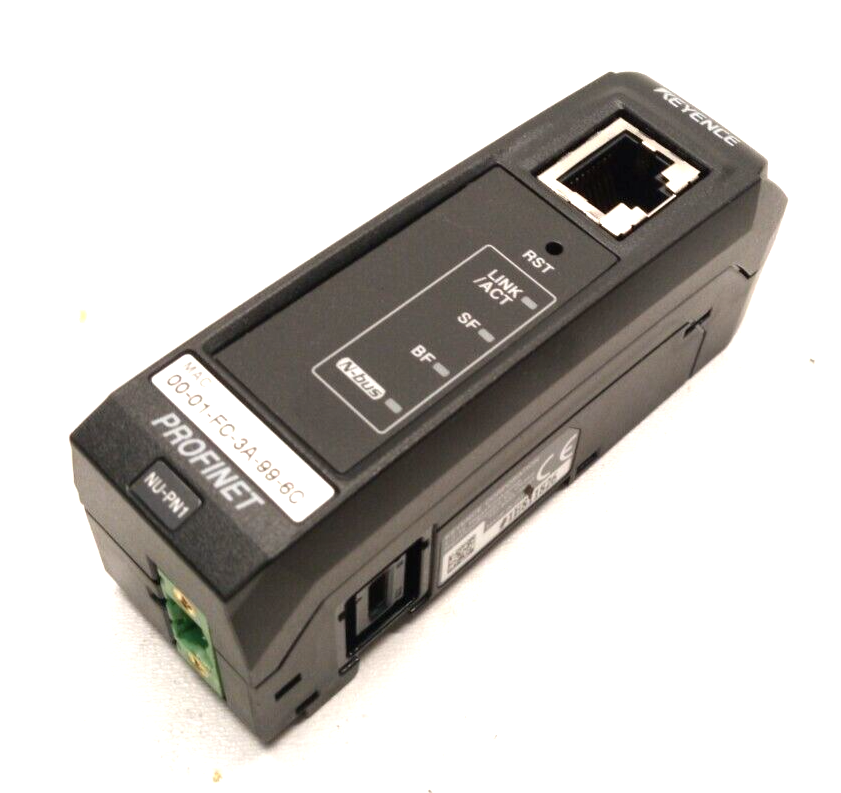

NU-PN1, Keyence, Unidad, de comunicación, PROFINET, adaptador.
Description
Especificacion:
| Model | NU-PN1 | |||
| Name | PROFINET Compatible Network Unit | |||
| Compatible network | PROFINET I/O communication | |||
| Ethernet Specifications |
Compliant standards | IEEE802.3u (100BASE-TX) | ||
| Transmission rate | 100 Mbps (100BASE-TX) | |||
| Transmission media | STP cable or Category 5 or higher UTP cable | |||
| Maximum cable length | 100 m | |||
| Max. number of connection stages | 2 | |||
| PROFINET | Compatible functions | Cyclic communication (Data I/O communication) Acyclic communication (Record data communication) |
||
| Number of connectable controllers | 1 | |||
| Update Time | 2 to 512 ms | |||
| Version of GSDML | Version 2.3 | |||
| Conformance class | Complies with conformance class A | |||
| Conformance test version | Complies with version 2.2.4 | |||
| Applicable protocols | LLDP, DCP | |||
| Sensor connection | Connectable sensors | Sensors with N-bus support *1 | ||
| Number of connectable units | 16 units max. (varies depending on the sensors to connect) |
|||
| Power supply | Power received from the NU-PN1 via the sensor connector | |||
| Allowable passing current | Overall 1200 mA or less *2 | |||
| Power during PoE power receiving | Supply voltage: 24V±10%, supply current: 360 mA or less *3*4 | |||
| Power voltage | 24 VDC ±10%, ripple (p-p) 10% or less (with power supply connector) 48 VDC (Max. 57 VDC) (During PoE power receiving) |
|||
| Power consumption | 1500 mW or less (at 24 V 60 mA max) *5 | |||
| Environmental resistance | Pollution degree | 2 | ||
| Ambient temperature | -20 to 55°C (no freezing) | |||
| Relative humidity | 35 to 85% RH (no condensation) | |||
| Vibration resistance | 10 to 55 Hz compound amplitude 1.5 mm, 2 hours each in X, Y, Z directions | |||
| Material | Main unit case: Polycarbonate Power supply connector: Polyamide (plug), PBT (socket) |
|||
| Weight | Approx. 80 g | |||
Mas Información?
Additional information
| Weight | 0,080 kg |
|---|
