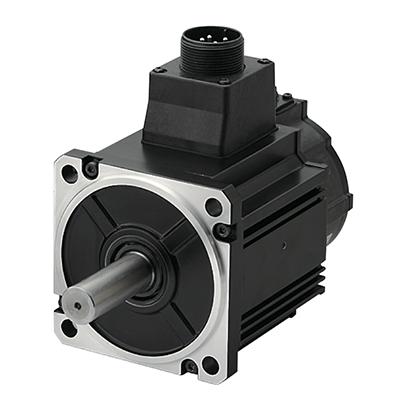

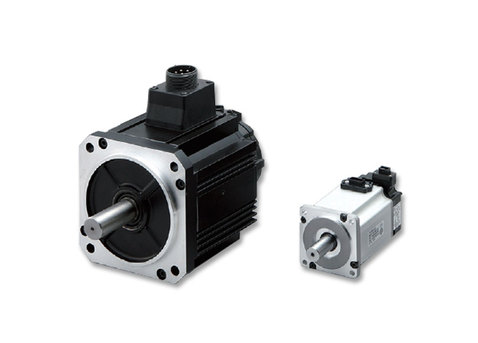

MSME304G1G, PANASONIC, AC Servo Motor, baja inercia, MINAS A5, 3kW, 9.55Nm, 3000rpm
Description
ESPECIFICACIONES:
| Item | Specifications |
|---|---|
| Part Number | MSME304G1G |
| Product details | Low inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MSME Series |
| Type | Low inertia |
| Protection class | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 120 mm sq. |
| Flange size (mm) | 120 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 4.5 |
| Voltage specifications (V) | 400 |
| Rated output (W) | 3000 |
| Rated current [Reference value] (A rms) | 9.2 |
| Holding brake | without |
| Mass (kg) | 8.3 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 9.55 |
| Momentary Max. peak torque (N ⋅ m) | 28.6 |
| Max. current [Reference value] (A 0-p) | 39 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0PM20049 x 2 in parallel |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Max. rotational speed (r/min) | 5000 |
| Inertia of rotor ( x10-4 kg ⋅ m²) | 6.50 |
| Recommended inertia ratio | 15 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Obsoleto desde: 31/07/2022, Consultenos su reemplazo.
