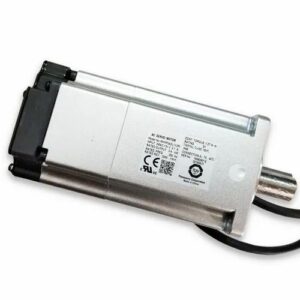

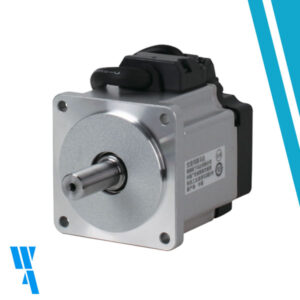

MHMF042L1V2, Panasonic, Servo Motor, Alta Inercia, 400W, Voltaje nominal. 200VCA ; RPM. 3000 rpm ; Torsión – nominal (oz-in / mNm). 179.9 / 1270 ; Potencia – Nominal. 400W
Description
50 W a 22 kW, fuente de alimentación de entrada para el controlador: voltaje CC 24 V/48 V・CA 100 V/200 V/400 V, codificador absoluto/incremental de 23 bits/sin batería, respuesta de frecuencia 3,2 kHz
Item Specifications
Part Number : MHMF042L1V2M
Product details: High inertia, Lead wire type
Family Name: MINAS A6
Series: MHMF Series
Type: High inertia
Special Order Product Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Protection class IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
Environmental Conditions For more details, please refer to the instruction manual.
Flange sq. dimension 60 mm sq.
Flange sq. dimension (Unit:mm) 60
Motor lead-out configuration Lead wire
Motor encoder connector Lead wire
Power supply capacity (kVA) 0.9
Voltage specifications (V) 200
Rated output (W) 400
Rated current (A (rms)) 2.1
Holding brake with
Mass (kg) 1.6
Oil seal with
Shaft Key-way, center tap
Rated torque (N ⋅ m) 1.27
Continuous stall torque (N ⋅ m) 1.40
Momentary Max. peak torque (N ⋅ m) 4.46
Max. current (A (o-p)) 10.4
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min) 3000
Rated rotational Max. speed (r/min) 6500
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 0.58
Recommended moment of inertia ratio of the load and the rotor 30 times or less
About recommended moment of inertia ratio of the load and the rotor Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications 23-bit Absolute/Incremental system
Notice When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution 8388608
Consultenos reparaciones, vetas, y service,
Mas información?
>>>MHMF042L1U2M
Additional information
| Weight | 2,0 kg |
|---|
