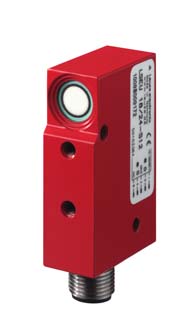

LSEU 18/24-S12, Leuze, Sensor ultrasónico de haz pasante, Receptor, 0..650mm
Description
| Series | 18 |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
Rangos
| Operating range | 0 … 0.65 m |
| Operating range | Guaranteed operating range |
| Ultrasonic frequency | 300 kHz |
| Shape of sound lobe | standard |
| Direction of beam | Front |
Alimentacion
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | From UB |
Salida
| Number of digital switching outputs | 2 Piece(s) |
Salidas
| Switching element | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching element | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Response time | 10 ms |
Connection
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Design | Cubic |
| Dimension (W x H x L) | 15 mm x 50 mm x 33 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Net weight | 70 g |
| Type of display | LED |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Step switch |
| Ambient temperature, operation | 0 … 70 °C |
| Ambient temperature, storage | -40 … 85 °C |
| Degree of protection | IP 65 |
| Protection class | III |
| Standards applied | IEC 60947-5-2 |
Mas Informacion? Leuze, Argentina
>>>
Additional information
| Weight | 0,070 kg |
|---|---|
| Dimensions | 5,0 × 1,5 × 3,3 cm |
