LMC802CAA10000, Schneider Electric, Controlador, LMC802, 130 EJES, 16 SALIDAS DIGITALES, 2 SALIDAS ANALÓGICAS, 24 V CC, 36 W
Description
LMC802, 130 EJES, 16 SALIDAS DIGITALES, 2 SALIDAS ANALÓGICAS, 24 V CC, 36 W

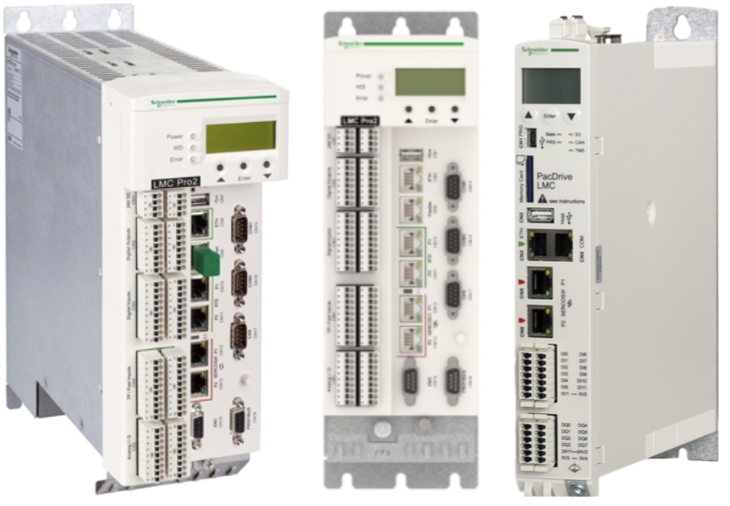

PacDrive 3 LMC Eco / Pro / Pro 2
| Range of product | PacDrive 3 |
|---|---|
| Product or component type | Motion controller |
| Product compatibility | LMC802 |
|---|---|
| Number of axis | 130 |
| Discrete input number | 20 digital input IEC 61131-2 Type 1 4 interrupt input IEC 61131-2 Type 1 16 touch probe input IEC 61131-2 Type 1 |
| Discrete input voltage | 0…6 V 20…33 V |
| Discrete input voltage type | DC |
| Analogue input number | 2 |
| Analogue input type | Voltage analog input – 10…10 V Current analog input – 20…20 mA |
| Analogue input resolution | 12 bits |
| Discrete input current | 5 mA digital input 5 mA interrupt input 5 mA touch probe input |
| Input impedance | 100000 Ohm analog input 500 Ohm |
| Anti bounce filtering | 1 ms or 5 ms configurable digital input 100 µs touch probe input 0.1 ms or 1 ms configurable interrupt input |
| Discrete output number | 16 digital output 2 analog output |
| Discrete output current | 250 mA digital output |
| Maximum leakage current | 0.4 mA |
| Maximum number of I/O expansion module | 2 |
| [Us] rated supply voltage | 24 V DC |
| Power consumption in W | 36 W |
| Memory type | 256 kB NVRAM 1 GB RAM DDR3L |
| Programming language | SFC (sequential function chart) FBD (function block diagram) IL (instruction list) CFC (continuous function chart) ST (structured text) LD (ladder) |
| Integrated connection type | 2 Ethernet port RJ45 Sercos 1 CAN port SUB-D 9 CANopen 1 USB port USB type A 2 Ethernet port RJ45 RT-Ethernet (real-time) 1 Ethernet port RJ45 PacNet 1 port SUB-D 9 Profibus DP 1 COM1 serial link SUB-D 9 RS232 1 COM2 serial link SUB-D 9 RS422/RS485 1 port SUB-D 9 master encoder 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T, FTP/HTTP |
| Supply | Power supply 24 VDC, <1 A |
| Width | 3.9 in (100 mm) |
| Height | 12.2 in (310 mm) |
| Depth | 9.6 in (243 mm) |
| Net weight | 7.7 lb(US) (3.5 kg) |
Reemplazo de: LMC600CAA10000, Consultar su reemplazo, solicite service.
Mas Información?
>>>Schneider Electric_PacDrive-3-LMC-Pro-LMC-Eco_LMC802CAA10000
Additional information
| Weight | 3,5 kg |
|---|---|
| Dimensions | 24,3 × 10,0 × 31,0 cm |
