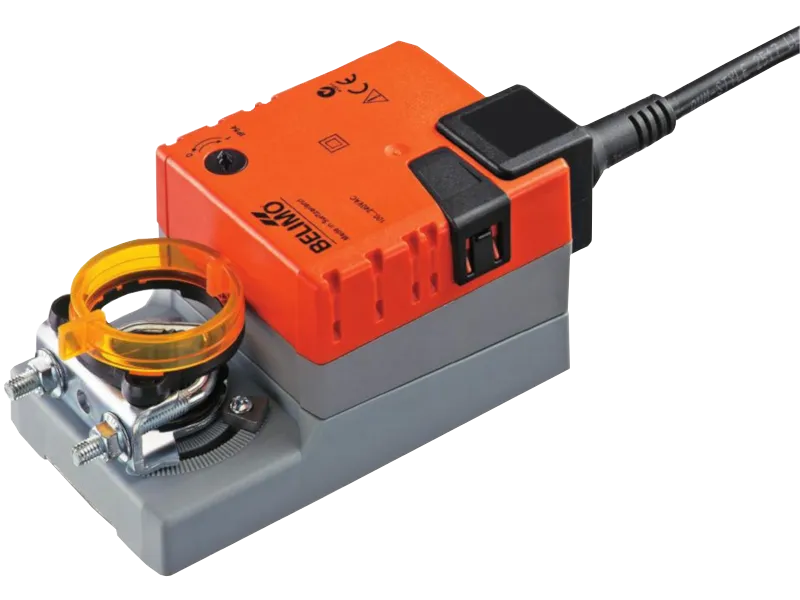

LM24A-SR, Belimo, damper, Angle of rotation – 95, 24V / 0-10V Actuator 5Nm.
Description
- Angle of rotation – 95
- Control type – 2…10V
- Degree of protection – IP54
- Electrical connection – Cable
- Fail-safe – NO
- Fail-safe function – Non fail-safe
- Manual override – With push-button, can be locked
- Mechanical interface – Universal shaft clamp 6…20 mm
- Power consumption (holding) – 0.4 W
- Power consumption (running) – 1 W
- Running time (motor) – 90 s / 90°
- Torque – 5 Nm
- Voltage AC/DC 24V
- Mas Information?
- >>>belimo_LM24A-SR_datasheet_en-gb
Additional information
| Weight | 0,500 kg |
|---|
