Article no.: KX 1501000

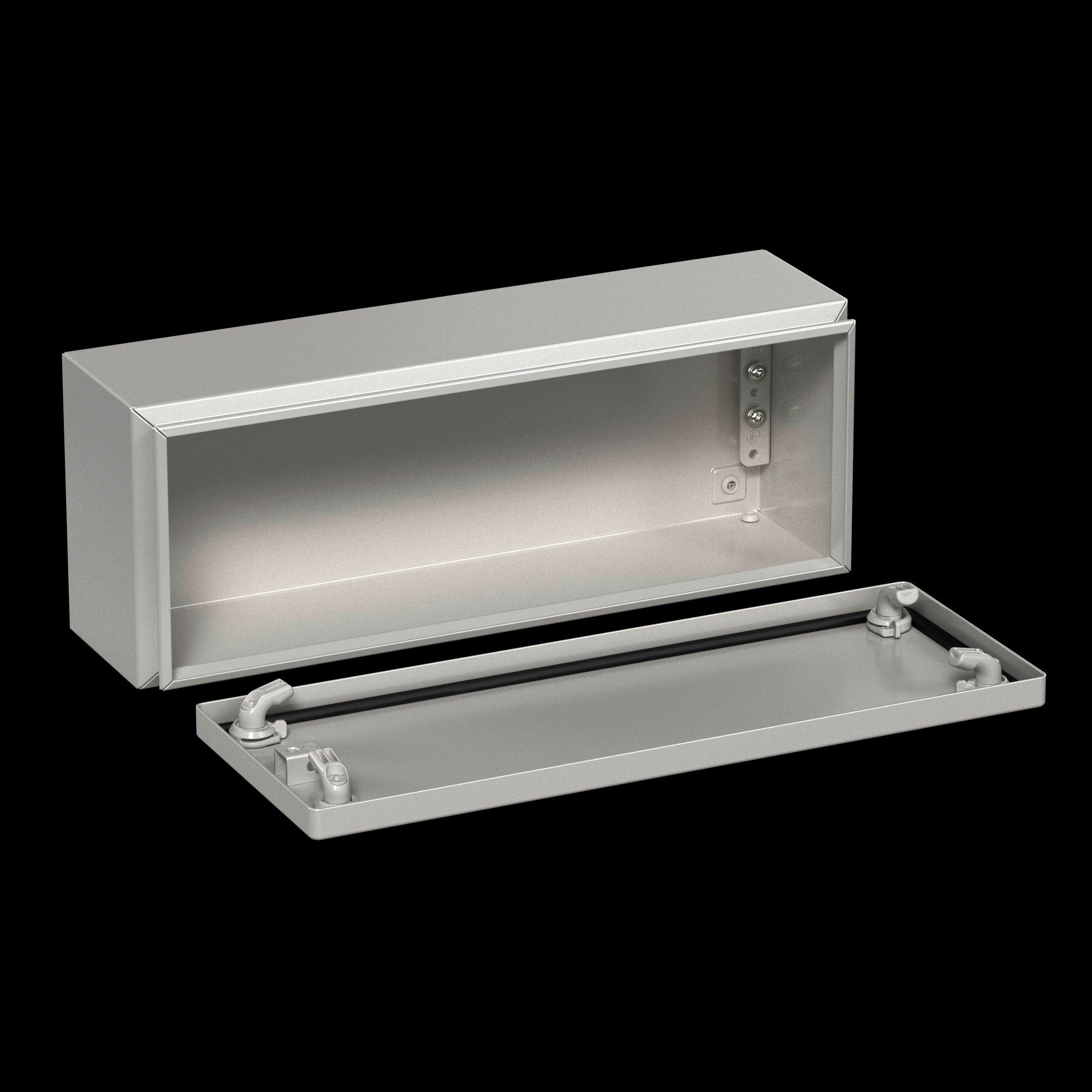

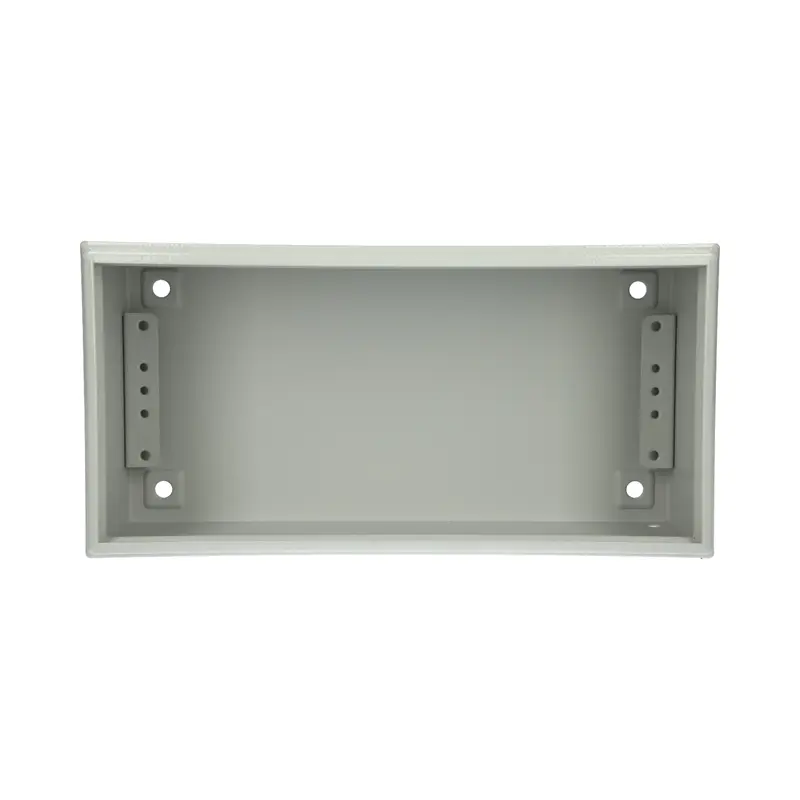

Product description: The small enclosure KX, terminal box KX, without a gland plate allows for flexible interior installation while maintaining a high protection category.

Material: Enclosure: Sheet steel
Cover: Sheet steel, all-round foamed-in PU seal

Surface finish: Enclosure and cover: Dipcoat primed, powder-coated on the outside, textured paint

Colour: RAL 7035

Supply includes: Enclosure with cover
Mini cam lock

Protection category NEMA: NEMA 1, NEMA 3R, NEMA 4, NEMA 12

Protection category to IEC 60 529IP 66

Type rating to UL 50: EType 1Type 3RType 4Type 12

IK CodeIK08

Dimensions:

Width: 300 mm
Height: 150 mm
Depth: 120 mm

Material thickness – cover1.25 mm

Material thickness – enclosure1.25 mm

Basic material: Sheet steel

Packs of: 1 pc(s).

Net weight: 2.2 kg

Gross weight: 2.317 kg

PCF per pack (cradle-to-gate)11.9 kg CO2 eq (Cat B)

Note on PCF category: Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared

Customs tariff number: 84879059

EAN: 4028177816152

ETIM 9EC000261

ETIM 8EC000261

ECLASS 8.027180101

Product description: KX Terminal box, WHD: 300x150x120 mm, sheet steel, without mounting plate, with cover, without gland plate
