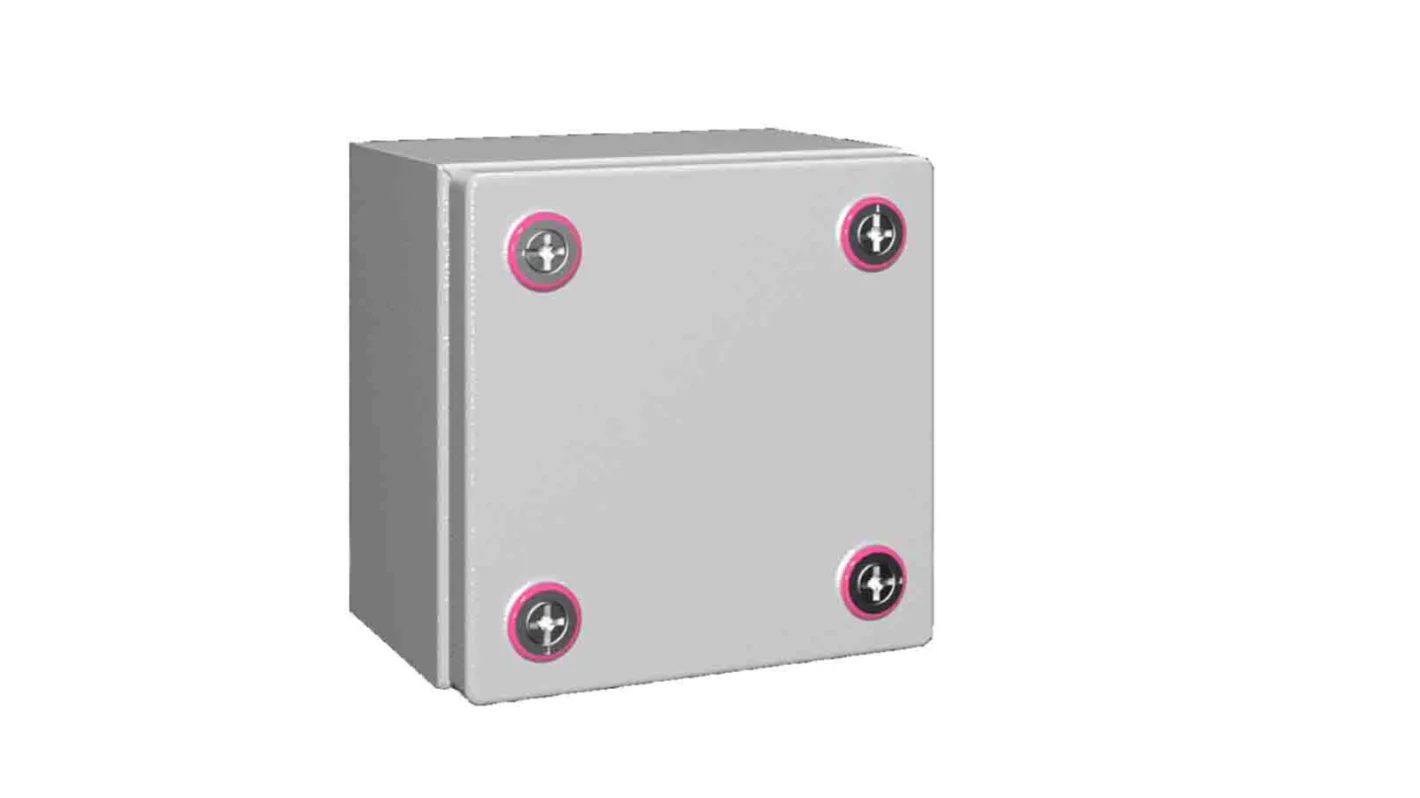

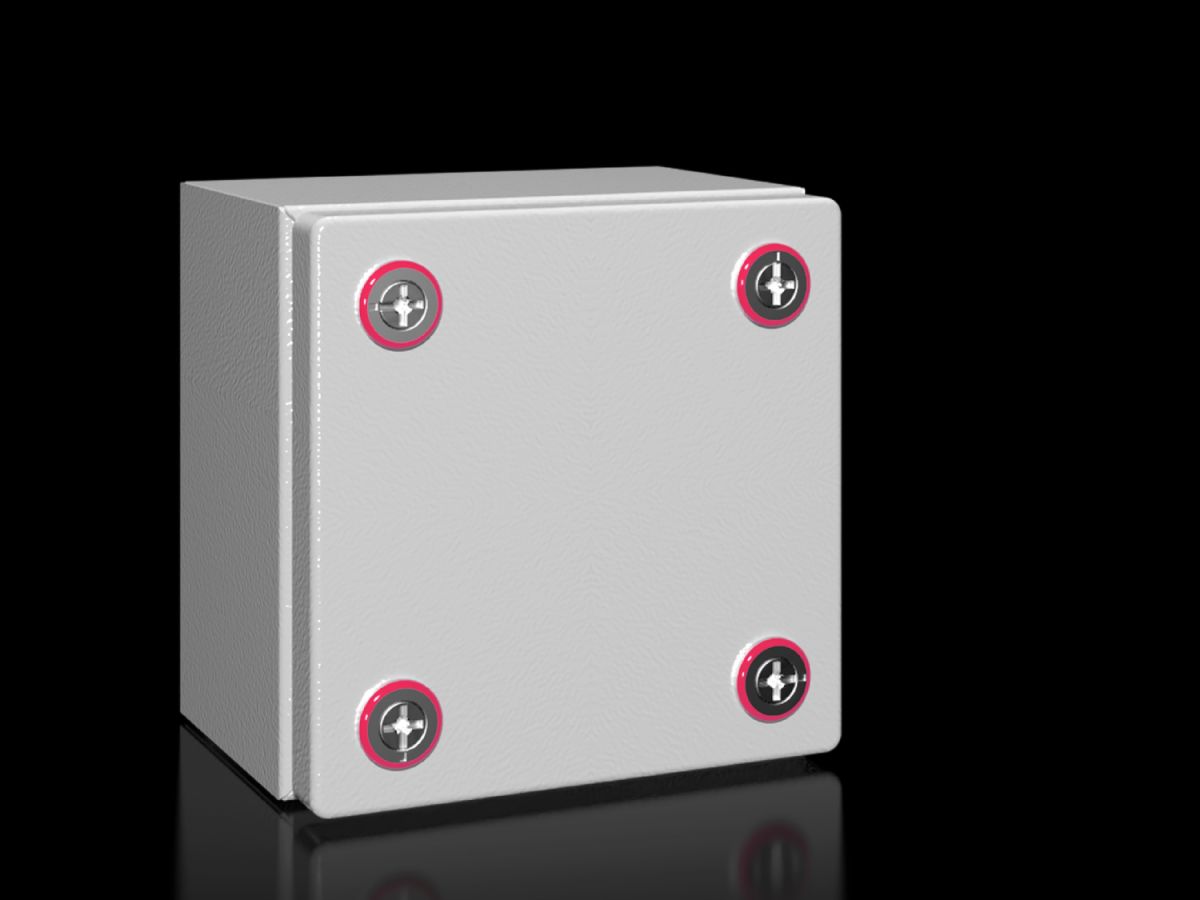

KX 1500000, Rittal, Caja de terminales KX, acero al carbono, sin brida
Description
La pequeña caja KX, caja de terminales KX, sin placa de prensaestopas permite una instalación interior flexible manteniendo al mismo tiempo una alta categoría de protección.
Article no.: KX 1500000
Product description: The small enclosure KX, terminal box KX, without a gland plate allows for flexible interior installation while maintaining a high protection category.
Material Housing: Carbon steel
Cover: Carbon steel, all-round foamed-in PU seal
Cover: Carbon steel, all-round foamed-in PU seal
Surface finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
Color: RAL 7035
Supply includes: Housing with cover
Mini cam lock
Mini cam lock
Protection category NEMANEMA 1NEMA 3RNEMA 4NEMA 12
Protection category IP to EN 60 529IP 66
Type rating according to UL 50EType 1Type 3RType 4Type 12
IK codeIK08
DimensionsWidth: 150 mm
Height: 150 mm
Depth: 120 mm
( Width: 5.91 ˝
Height: 5.91 ˝
Depth: 4.72 ˝ )
Height: 150 mm
Depth: 120 mm
( Width: 5.91 ˝
Height: 5.91 ˝
Depth: 4.72 ˝ )
Material thickness – cover1.25 mm
( 0.05 ˝ )
( 0.05 ˝ )
Material thickness – enclosure1.25 mm
( 0.05 ˝ )
( 0.05 ˝ )
Base materialCarbon steel
Packaging unit1 pc(s).
Net weight1.423 kg
Gross weight1.435 kg
PCF/VE (cradle-to-gate)8.2 kg CO2 eq (Cat B)
Information regarding the PCF classCategory B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
Customs tariff number84879059
EAN4028177816145
ETIM 9EC000261
ETIM 8EC000261
ECLASS 8.027180101
Product descriptionKX Terminal box, WHD: 150x150x120 mm, sheet steel, without mounting plate, with cover, without gland plate
Additional information
| Weight | 0,423 kg |
|---|---|
| Dimensions | 12,0 × 5,9 × 15,0 cm |
