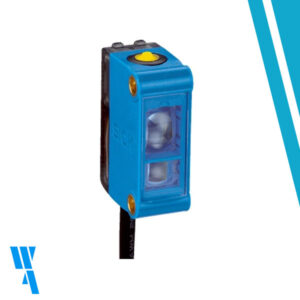

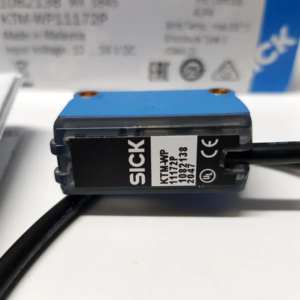

KTM-WP11172P, Sick, Sensores de contraste Sick, 12,5 mm, PNP, 50 mA, 10 → 30 V dc, IP6
Description
| Supply voltage | 12 V DC … 24 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Current consumption | < 50 mA 3) |
| Switching frequency | 15 kHz 4) |
| Response time | 32 µs 5) |
| Jitter | 15 µs |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 50 mA 6) |
| Input, static teach-in (ET) | PNP: Teach: U = 10,8 V … < UV
PNP: Run: U < 2 V or open |
| Retention time (ET) | 28 ms, non-volatile memory |
| Time delay | None |
| Connection type | Cable with M12 male connector, 4-pin, 0.2 m |
Sick , Service Ingenieria, Recambios.
Links
>>>KTM-WP11172P
Additional information
| Weight | 0,020 kg |
|---|---|
| Dimensions | 2,1 × 1,2 × 3,15 cm |
