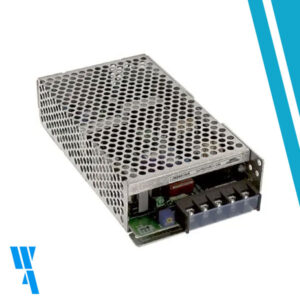

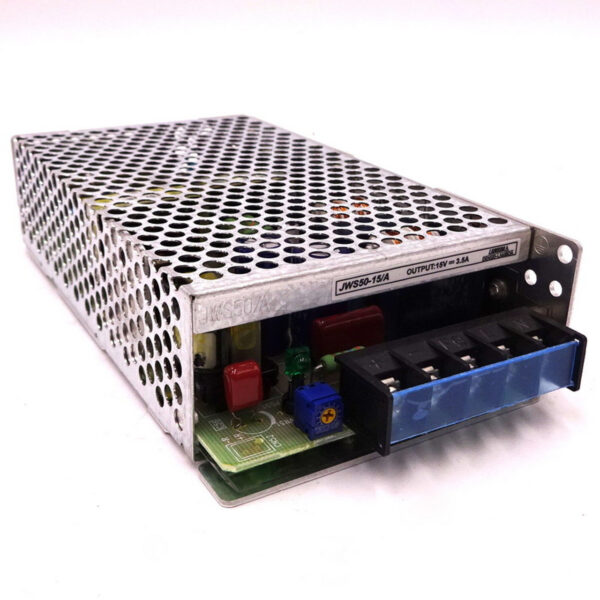

JWS50-15/A, TDK-LAMBDA, Fuentes de alimentación conmutada, 15V, 3.5A, Corriente – Potencia (Vatios). 50W ; Aplicaciones. ITE (Comercial) ; Voltaje – Aislamiento. 3 kV.
Description
- Recommended Alternate Part No. : HWS50A-15
- (Interchangeability is not guaranteed.)
-
Electrical Characteristics
Input - Single-phase
Input Voltage Range[AC] - 85 to 265Vac
Input Voltage Range[DC] - 120 to 330Vdc
Efficiency - 77% Typ.
Rated Output Voltage[DC] - 15Vdc
Output Voltage Range[DC] - 13.5 to 16.5Vdc
Maximum Output Current - 3.5A
Maximum Output Power - 52.5W
Package Type & Size
Package / Mounting - Enclosed / Unit type
Industry Standard Size Width(W) - 37mm Nom. (1.46in Nom.)
Height(H) - 85mm Nom. (3.35in Nom.)
Depth(D) - 159mm Nom. (6.26in Nom.)
Weight - 350g Typ. (0.8lbs Typ.)
Other
Operating Temp. Range - -10 to 60°C
Cooling - Convection
Safety Standard(Certified) - CSA C22.2 No.60950-1
- EN60950-1
- UL60950-1
Safety Standard(Conformed) - Den-an
Remarks - This page only shows representative characteristics. Please refer to the technical data for detailed specifications and conditions.
Obsoleta: Comuniquese para reemplazo,
- Alternativa No. : HWS50A-15
Mas Información?
>>>jws50_spc
Additional information
| Weight | 0,400 kg |
|---|---|
| Dimensions | 15,9 × 3,7 × 8,5 cm |
