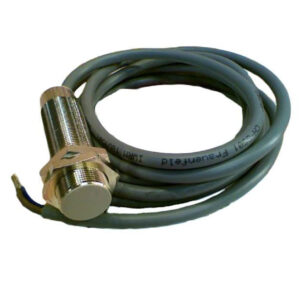

IWRM 18U9501, Baumer, Sensores de distancia inductivos, 2 … 5 mm · salida de tensión · cable, 2 m · 60 °C · IP 67.
General data
Mounting type: Flush
Measuring distance Sd: 2 … 5 mm
Reference distance: 3.25 … 3.75 mm
Measuring speed: < 1 mm / ms
Repeat accuracy: 0.02 mm
Linearity error: ± 100 µm
Temperature coefficient: 1 µm / (K mm)
Electrical data: Voltage supply range +Vs: 15 … 30 VDC
Current consumption max. (no load): 20 mA
Output circuit: Voltage output
Output signal: 1 … 9 VDC
Load resistance: > 1000 Ohm
Residual output ripple: < 0.5 % Vs
Short circuit protection: Yes
Reverse polarity protection: Yes
Mechanical data: Design
Cylindrical threaded: Material (sensing face)
PBT: Housing material
Brass nickel plated
Dimension: 18 mm
Housing length: 65 mm
Connection types: Cable, L=2 m
Tightening torque max.: 40 Nm (Front: 28 Nm)
Ambient conditions:
Operating temperature: 0 … +60 °C
Protection class: IP 67
Mas Información?
| Weight | 0,045 kg |
|---|---|
| Dimensions | 6,5 × 1,8 × 1,8 cm |
