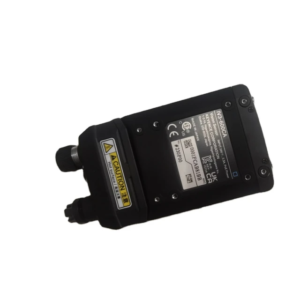

IV3-600CA, Keyence, Sensor de reconocimiento de imagen, Cámara, Cámara inteligente Campo amplio.
Description
Specifications
| Model | IV3-600CA | |||
| Type | Wide view | |||
| Installed distance | 50 mm 1.97″ or more *1 | |||
| Tools | Available modes | Standard mode / Sorting mode | ||
| Tool with standard mode | Learning, Outline, Color area *2, Area *3, Edge pixels, Color average *2, Brightness average *3, Width, Diameter, Edge presence, Pitch, OCR, Color prohibit *4, Brightness prohibit, Position adjustment, High-speed position adjustment (1-axis edge/2-axis edge), Blob count |
|||
| Number of tools | Total: 65 tools *5 | |||
| Field of view | Installed distance 50 mm 1.97″: 51 (H) × 38 (V) mm 2.01″ (H) × 1.50″ (V) to Installed distance 3000 mm 118.11″: 2730 (H) × 2044 (V) mm 107.48″ (H) × 80.47″ (V) |
|||
| Switch settings (programs) | 128 programs (when using SD card) / 32 programs (when not using SD card) | |||
| Image receiving element | Type | 1/2.9 inch color CMOS | ||
| Number of pixels | 1280 (H) × 960 (V) | |||
| Image history | Number of storable images | 100 images *6 | ||
| Save conditions | Selectable between NG only, NG and OK near threshold *7, and All *6 | |||
| Focus adjustment | Auto *4 | |||
| Image data transfer | Transfer destination | Selectable between SD card, FTP server and SFTP server | ||
| Transfer format | Selectable between bmp, jpeg, iv3p, and txt, and file names can be modified | |||
| Transfer conditions | Selectable between NG only, NG and OK near threshold *8, and All | |||
| Exposure time | 12 μs to 10 ms | |||
| Analysis information | RUN display | Tools list (Judgment results, degree of similarity, or degree of similarity bar display) *8 | ||
| RUN information | Switchable between OFF, histogram, processing time, count, and output monitor Histogram: Histogram, degree of similarity (Max., Min., Ave.), Number of OKs, Number of NGs Processing time: Processing time (latest, Max., Min., Ave.) Count: Trigger numbers, Number of OKs, Number of NGs, Trigger errors, Strobe errors Output monitor: ON/OFF status by output *8 |
|||
| Lights | Illumination | White LED | ||
| Lighting method | Pulse lighting/ continuously lighting is switchable. | |||
| Other functions | Image capture function | Digital zoom (2×, 4×), HDR, High gain, Color filter *2, White balance *2, Brightness correction, AI capture | ||
| Tool functions | Additional learning, Mask outline, Masking function, Color extraction/exclusion *2, Color histogram function *2, Monochrome histogram function *3, Scaling function | |||
| Utilities | Failing sensor list, Failure hold, Test run, I/O monitor, Security settings (Two-factor password), Simulator *9, Additional FTP/SFTP Image Information, Multi-position adjustment, Multi-master image registration, High-speed program switching, Auto program switching, Auto setting backup/restore, Threshold changing in RUN |
|||
| Indicators | OUT, TRIG, STATUS, LINK/ACT, SD | |||
| Input | Type | Switchable between non-voltage input and voltage input For no-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit) For voltage input: Maximum input rating 30 V, ON voltage 18 V or higher, OFF current 0.15 mA or lower, ON current 2 mA (for 24 V) |
||
| Number of inputs | 6 ports, 3 ports are selectable as IN/OUT | |||
| Function | IN1: External trigger, IN2, IN3, I/O1 to I/O3: Enable by assigning optional functions Assignable functions: Program switching, Clear error, External master image registration, SD card save cancel |
|||
| Output | Type | Photo MOS relay output, N.O./N.C. Switchable Maximum rating 30 V 50 mA, residual voltage 1.5 V or less *10 |
||
| Number of outputs | 6 ports, 3 ports are selectable as IN/OUT | |||
| Function | Enable by assigning the optional functions Assignable functions: Total judgment (OK/NG), Run, Busy, Position adjustment result, Judgment result of each tool, Result of the logical operation of each tool, Error, SD card error, Variety discrimination result, Master judgment result |
|||
| Power/I/O | Connector | M12 12 pin A code Male connector | ||
| PoE | PoE power Class 3/4/6 *11 | |||
| Ethernet | Standard | 1000BASE-T/100BASE-TX | ||
| Connector | M12 8 pin X code Female connector | |||
| Network function | FTP client, SFTP client | |||
| Interface compatibility | Built-in Ethernet | EtherNet/IP®, PROFINET *12, TCP/IP non-procedure communication | ||
Mas información?
Additional information
| Weight | 0,300 kg |
|---|
