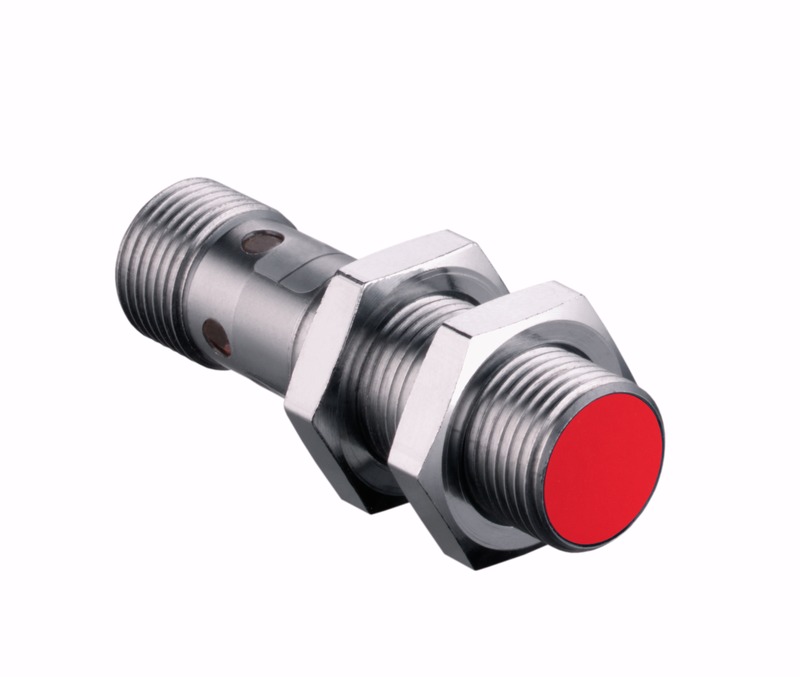

IS 112 MM/4NO-4E0-M12, LEUZE, Sensor Inductivo de proximidad, Sn 4mm, 10-30VDC, M12
Description
| Series | 112 |
| type. operating range limit Sn | 4 mm |
| Operating range Sa | 0 … 3.2 mm |
| Protective circuit | Overload protection Polarity reversal protection Short circuit protected |
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | 10 %, From UB |
| Open-circuit current | 0 … 10 mA |
| Temperature drift, max. (in % of Sr) | 10 % |
| Repeatability, max. (in % of Sr) | 1 % |
| Switching hysteresis | 15 % |
| Number of digital switching outputs | 1 Piece(s) |
| Voltage type | DC |
| Switching current, max. | 200 mA |
| Residual current, max. | 0.01 mA |
| Voltage drop | ≤ 2 V |
| Switching element | Transistor, PNP |
| Switching principle | NO (normally open) |
Mas information? Contactenos..
Additional information
| Weight | 0,085 kg |
|---|---|
| Dimensions | 5,0 × 1,2 × 1,2 cm |
