IS-05-A1-03, DATALOGIC, Sensor, Cable, 8 mm, sensor, NO, 3 hilos, PNP, acero inoxidable, empotrado

Description

Electrical data

Operating Voltage 10…30Vdc

No-Load supply current ≤ 10mA

Load current 100mA

Output voltage drop < 1,5V

Max ripple content ≤ 10%

LED indicators Yellow LED output state

Short-circuit protection Yes

Reverse Polarity Protection Yes

Emission ≥100kHz

Protection against inductive loads Yes

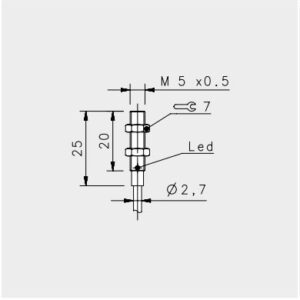

Mechanical data

Mounting Shielded

Dimensions Ø5×25

Housing Material Stainless steel

Connections 2m PVC Cable

Active Head Material POM

Tightening torque 1,5Nm

Material Stainless steel

Diameter/Dimension M5

Mas Información?

Additional information

Weight	0,45 kg
