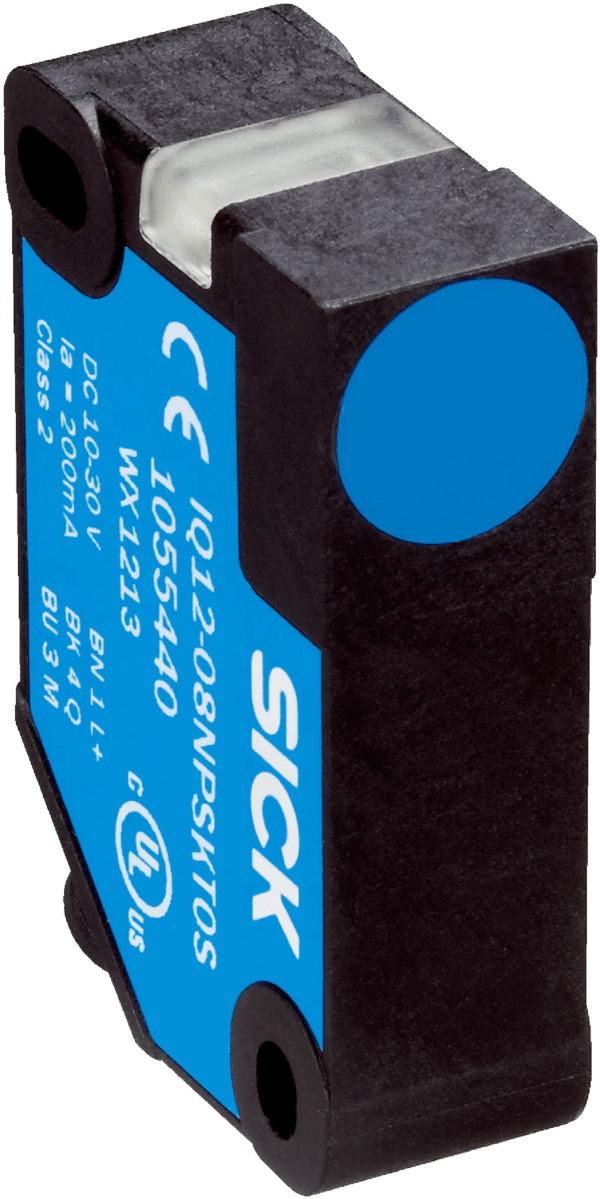

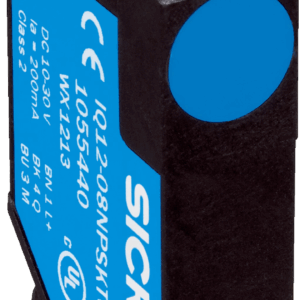

IQ12-02BPSKU3SS13, SICK, Sensor inductivo, alcance 2mm, 10-30 VDC, IP68, 2kHz.
Description
| Housing | Rectangular |

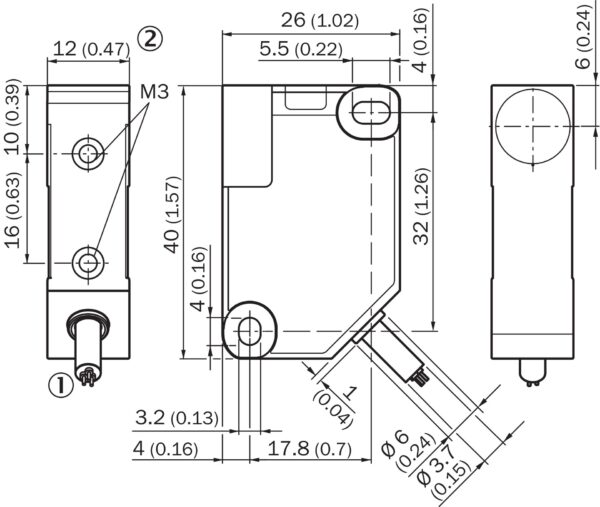

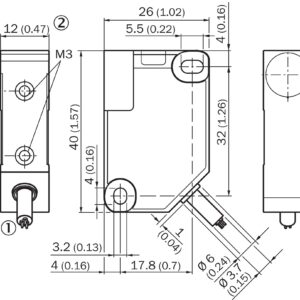

| Dimensions (W x H x D) | 12 mm x 40 mm x 26 mm |
| Sensing range Sn | 2 mm |
| Safe sensing range Sa | 1.62 mm |
| Installation type | Flush |
| Switching frequency | 2,000 Hz |
| Connection type | Cable, 3-wire, 3 m |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 1) |
1) According to EN 60529.
| Supply voltage | 10 V DC … 30 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 2 V 2) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5 % … 15 % |
| Reproducibility | ≤ 2 % 3)
4) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| No load current | 10 mA |
| Cable material | PUR |
| Conductor size | 0.25 mm² |
| Cable diameter | Ø 3.7 mm |
| Short-circuit protection |  |
| Power-up pulse protection | |
| Shock and vibration resistance | 30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C … +75 °C |
| Housing material | Plastic, VISTAL® |
| Sensing face material | Plastic, VISTAL® |
| Tightening torque, max. | ≤ 1 Nm |
Mas Información?
Additional information
| Weight | 0,155 kg |
|---|---|
| Dimensions | 2,6 × 1,2 × 4,0 cm |
