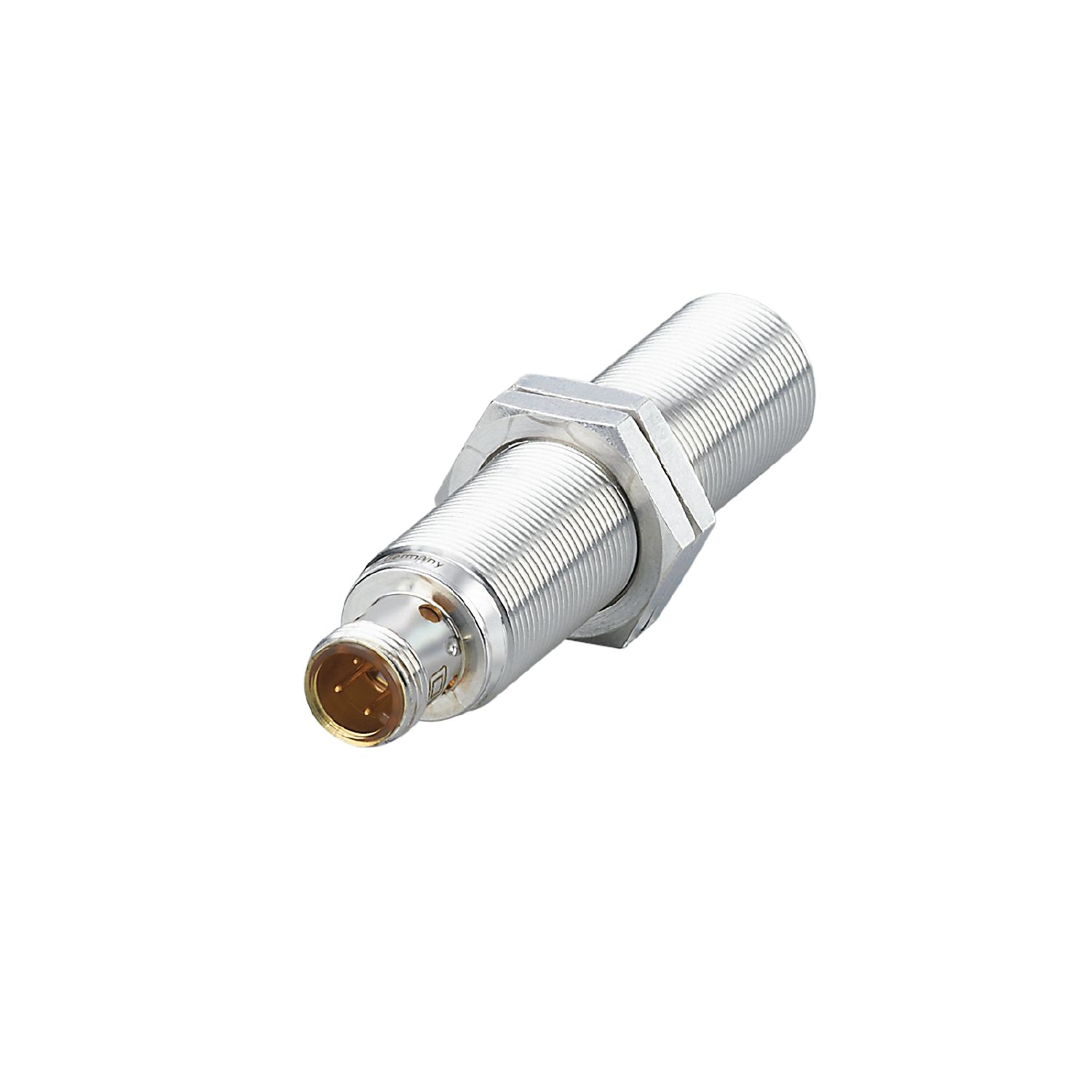

IGA3005-APKG/US-104, IFM, Inductive sensor, 5mm, SENSING RANGE, M18X1, NC, PNP, 10-30V DC
Description
Product characteristics
| Electrical design |
PNP |
| Output function |
normally closed |
| Sensing range[mm] |
5 |
| Housing |
threaded type |
| Dimensions[mm] |
M18 x 1 / L = 80 |
Application
| Special feature |
Gold-plated contacts |
Electrical data
| Operating voltage[V] |
10…30 DC |
| Current consumption[mA] |
< 10 |
| Protection class |
II |
| Reverse polarity protection |
yes |
Outputs
| Electrical design |
PNP |
| Output function |
normally closed |
| Max. voltage drop switching output DC[V] |
2.5 |
| Permanent current rating of switching output DC[mA] |
200 |
| Switching frequency DC[Hz] |
500 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
