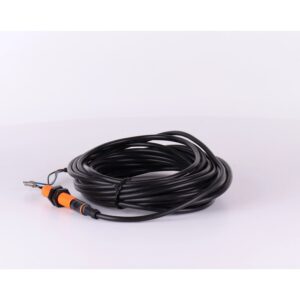

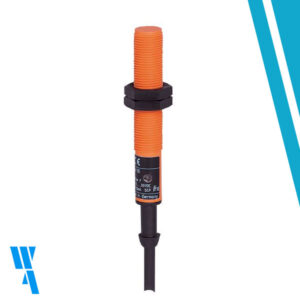

IF5347, IFM, Sensor inductivo, rosca de plástico, M12 x 1, CC PNP, cable, rango 4 mm
Description
Alto grado de protección para los requisitos de los entornos industriales más exigentes
Amplio rango de temperatura de funcionamiento
Frecuencia de conmutación muy alta
Para una detección precisa de la posición en las máquinas
Product characteristics
Electrical design PNP
Output function normally open
Sensing range[mm] 4
Housing threaded type
Dimensions[mm] M12 x 1 / L = 71
Electrical data
Operating voltage[V] 10…36 DC
Current consumption[mA] 15; (24 V)
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 250
Switching frequency DC[Hz] 400
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Sensing range[mm] 4
Real sensing range Sr[mm] 4 ± 10 %
Operating distance[mm] 0…3.25
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis[% of Sr] 1…15
Switch point drift[% of Sr] -10…10
Operating conditions
Ambient temperature[°C] -25…80
Protection IP 67
Tests / approvals, IFM Sensores Argentina, ventas., Service.
Mas Información?
Additional information
| Weight | 0,200 kg |
|---|
