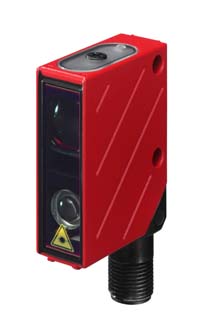

HRTL 8/66-350-S12, LEUZE, Sensor fotoeléctrico, 0,007-0,4 m, láser, push-pull, interruptor de luz, serie 8

Description

Diffuse sensor with background suppression

Series 8

Operating principle: Diffuse reflection principle with background suppression

Optical data

Operating range, white 90% 0.007 … 0.35 m

Operating range, gray 18% 0.01 … 0.33 m

Operating range, black 6% 0.012 … 0.3 m

Operating range limit, white 90% 0.007 … 0.4 m

Operating range limit, gray 18% 0.01 … 0.37 m

Operating range limit, black 6% 0.012 … 0.34 m

Light source Laser, Red

Laser class 2, IEC/EN 60825-1:2007

Electrical data

Protective circuit Polarity reversal protection

Short circuit protected

Performance data

Supply voltage UB 10 … 30 V, DC

Residual ripple 0 … 15 %, From UB

Open-circuit current 0 … 35 mA

Mas información?

Additional information

Weight	0,355 kg
Dimensions	4,8 × 1,5 × 3,8 cm
