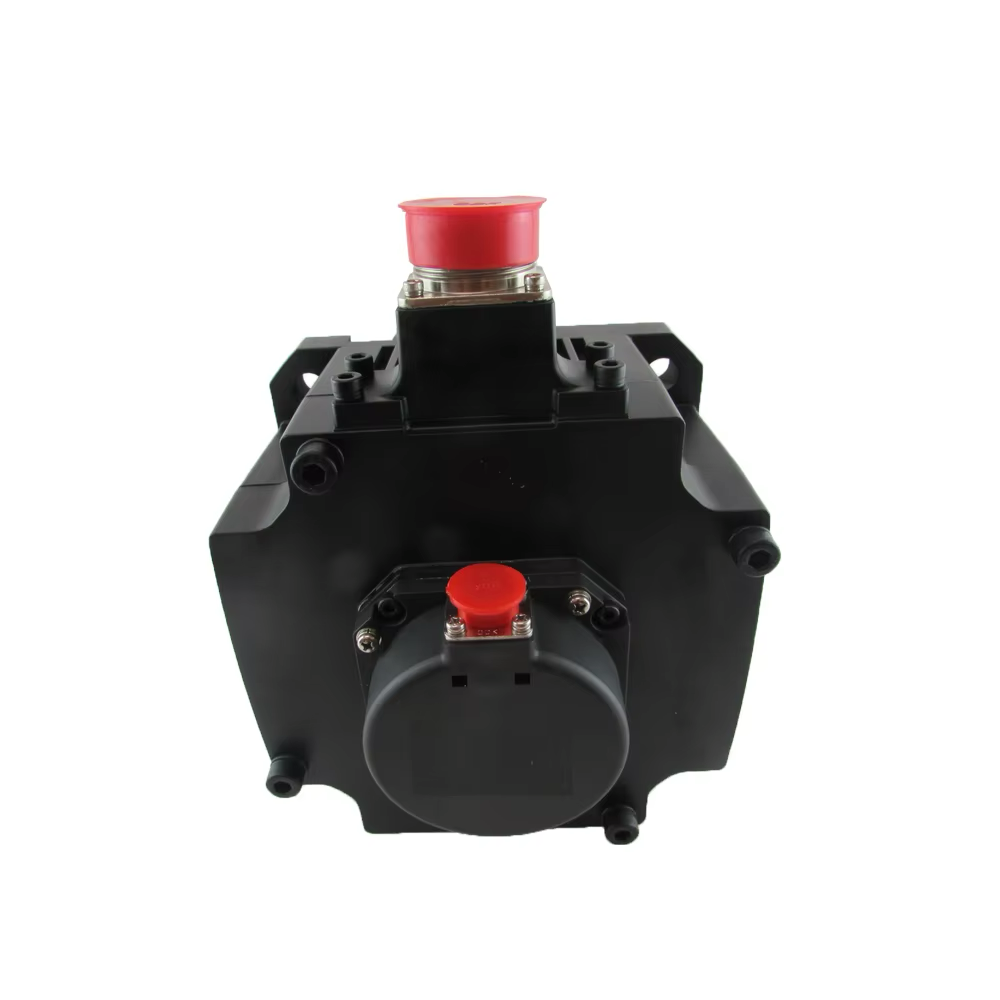

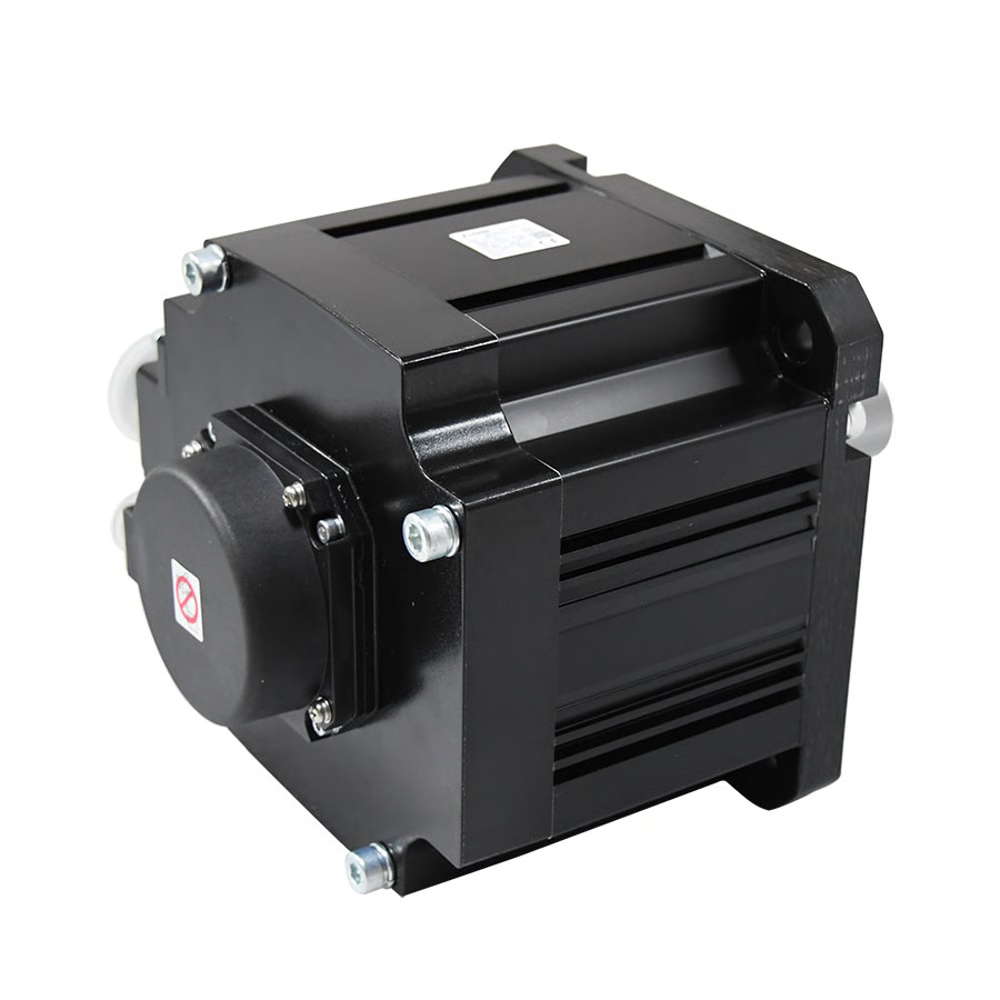

HG-SR1024, MITSUBISHI, Servomotor, HG Series, Power 1 kW; Torque 4.8 Nm, Max. Torque 14.3 Nm , 400V ·

Description

FA-Servo-Motion: Servo Motor

Series MELSERVO-J4

Type HG-SR

Power Supply (V) 400

Rated Capacity (kW) 1

Inertia MEDIUM INERTIA

Rated Torque (Nm) 4,8

Maximum Torque (Nm) 14,3

Rated Speed (rpm) 2000

Inertia (kg*cm2) 11,6

Brake NO

Shaft Type STRAIGHT SHAFT

Current Type AC

Encoder Resolution (p/rev) 4194304

Maximum Speed (rpm) 3000

Protection Class IP67

Encoder Type 22-BIT

Additional information

Weight	6,2 kg
Dimensions	17,7 × 13,0 × 18,7 cm
