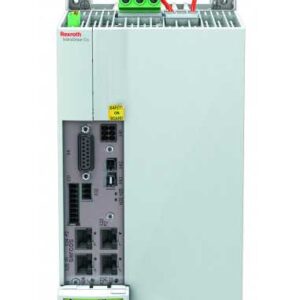

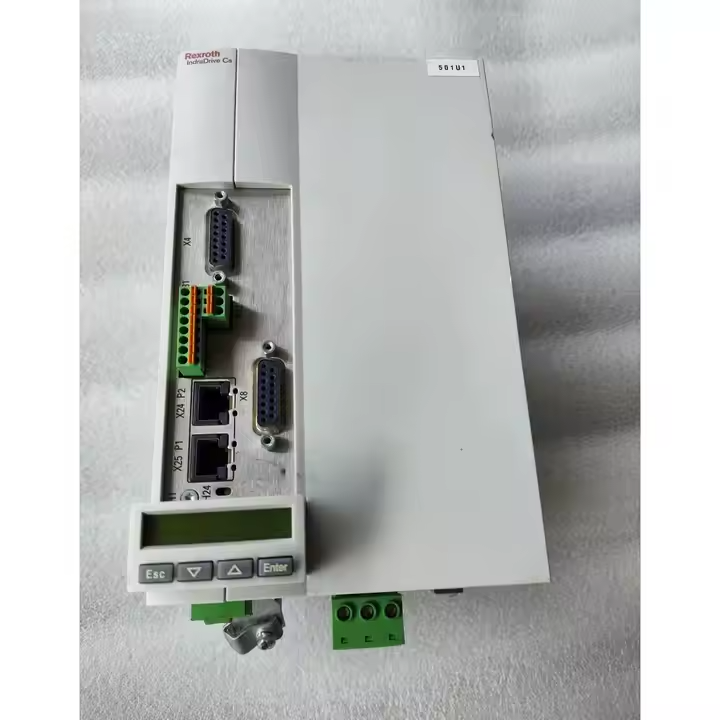

HCS01.1E-W0054-A-03-B-ET-EC-EC-NN-NN-FW, INDRAMAT, DRIVE, Converter (cab.): HCS01, W0054 -03-, 54Amp, 14KW,
Description

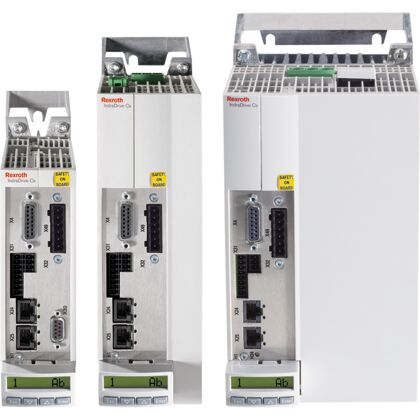

Los convertidores compactos IndraDrive Cs (HCS01) cubren el rango de potencia inferior en kW. Combinan unidades de potencia y control en una sola unidad y ofrecen comunicación basada en Ethernet, una interfaz multicodificador y tecnología de seguridad integrada.
Diseño compacto para aplicaciones de un solo eje.
| Product attributes | |
|---|---|
| EPLAN | |
| Cooling type | internal air cooling |
| Maximum current [A] | 54 |
| Control unit power | BASIC |
| Continuous current [A] | 21 |
| Operating panel | with standard control panel, firmware must be ordered separately |
| Predefined communication protocol | EtherCAT SoE; EtherCAT CoE; Sercos 3; ProfiNet IO; EtherNet/IP |
| Interface encoder 1 | Multi-encoder interface |
| Safety function | Safe Torque Off (STO) |
| Width [mm] | 130 |
| Height [mm] | 220 |
| Depth [mm] | 268 |
| International protection code | IP20 |
| Nominal mains frequency [Hz] | 50-60 |
| Maximum power (without choke) [kW] | 14 |
| Continuous power (without choke) [kW] | 9 |
| Max. power (with power choke) [kW] | 19 |
| Continuous power (with power choke) [kW] | 14 |
| max. output frequency (@4 kHz switching frequency) [Hz] | 0-400 |
| max. output frequency (@8 kHz switching frequency) [Hz] | 0-800 |
| max. output frequency (@12 kHz switching frequency) [Hz] | 0-1200 |
| Power supply voltage (3 AC) [V] | 200-500 |
| Output voltage | 3 x AC 0 … 500 V |
| Interface encoder 2 | not defined |
| Weight [kg] | 4.44 |
Mas Información?
Additional information
| Weight | 4,400 kg |
|---|---|
| Dimensions | 26,8 × 13,0 × 22,0 cm |
