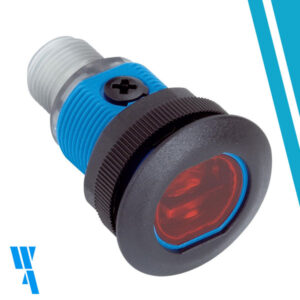

GRL18S-P2336, Sick, Sensor fotoeléctrico cilíndrico, 19.7 ft, Visbl Red, PNP, Conector M12, 3-pin
Description
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 30 mA |
| Switching output | PNP |
| Switching mode | Light switching |
| Signal voltage PNP HIGH/LOW | VS – (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA 3) |
| Response time | < 500 µs 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Connector M12, 3-pin |
| Circuit protection | A 6)
B 7) D 8) |
| Protection class | III |
| Polarisation filter | ✔ |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Fastening nuts (2 x) |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| Ambient operating temperature | –25 °C … +55 °C 9) |
| Ambient temperature, storage | –40 °C … +70 °C |
| UL File No. | E348498 |
| Functional principle | Photoelectric retro-reflective sensor | ||||||
| Functional principle detail | Dual lens | ||||||
| Dimensions (W x H x D) | 18 mm x 18 mm x 38.1 mm | ||||||
| Housing design (light emission) | Cylindrical | ||||||
| Thread diameter (housing) | M18 x 1 | ||||||
| Optical axis | Axial | ||||||
| Sensing range max. | 0.03 m … 7.2 m 1) | ||||||
| Sensing range | 0.06 m … 6 m 1) | ||||||
| Type of light | Visible red light | ||||||
| Light source | PinPoint LED 2) | ||||||
| Light spot size (distance) | Ø 175 mm (7 m) | ||||||
| Wave length | 650 nm | ||||||
| Adjustment | None | ||||||
|
|||||||
1) Reflector PL80A.
2) Average service life: 100,000 h at TU = +25 °C.
