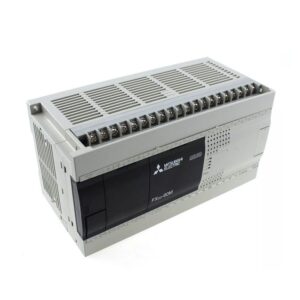

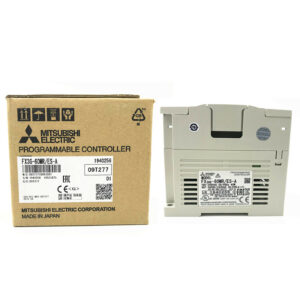

FX3G-60MR/ES-A, Mitsubishi, FX Series 24 VDC Sink/Source Relay, 36 Inputs, 24 Outputs.
PLC, FX3G Base Unit AC 100-240 V; 36 inputs DC 24V; 24 relay outputs
Description
SERIES |
MELSEC-F SERIES |
|---|---|
TYPE |
FX3G |
POWER SUPPLY (V) |
100-240 |
CURRENT TYPE |
AC |
PROGRAM MEMORY |
32K STEPS |
PROGRAM MEMORY UNIT |
EEPROM |
INTEGRATED DIGITAL INPUTS |
36 |
INTEGRATED DIGITAL OUTPUTS |
24 |
OUTPUT TYPE |
RELAY |
LOCAL I/O POINTS |
128 |
LOCAL + REMOTE I/O POINTS |
256 |
EXPANDABLE |
YES |
CYCLE TIME LD (NS) |
210 |
CYCLE TIME MOV (NS) |
500 |
USB |
1 |
RS-422 |
1 |
POWER CONSUMPTION (W) |
40 |
BUFFER BATTERY |
OPTION |
PROTECTION CLASS |
IP10 |
MIN. AMBIENT TEMPERATURE (°C) |
0 |
MAX. AMBIENT TEMPERATURE (°C) |
55 |
ANCHURA (MM) |
175 |
|---|---|
ALTURA (MM) |
90 |
PROFUNDIDAD (MM) |
86 |
PESO (KG) |
0,85 |
Mitsubishi Electric Industrial Automation Argentina, Service Provider.
Somos Wartung Automation, Lider en equipamientos, repuestos y service para la automatizacion en Argentina hace 23 anos.
Distribuidores de Mitsubishi Argentina, PLC, Service, HMi Pantallas, Drives Amplificadores, reparaciones, ventas, repuestos, proveedor.
Atendemos Industrias farmacéuticas, alimenticias, procesos, laboratorios, metalmecanica.
Consulte por toda la linea de productos Mitsubishi, Argentina, somos Service , reparaciones, ventas, Wartung Automation Argentina.
Additional information
| Weight | 0,6 kg |
|---|---|
| Dimensions | 17,5 × 9 × 8,6 cm |
