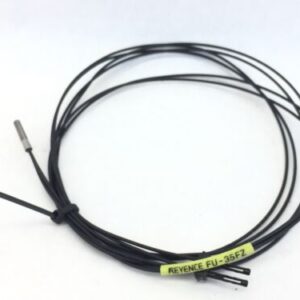

FU-35FZ, KEYENCE, Reflective Fiber Unit
Fiber Unit Optic Sensors
Description
Specifications
| Model | FU-35FZ*1 | |||
| Size | M3 | |||
| Detection arrangement | Coaxial | |||
| Fibre unit length | 1 m39.37″ free-cut | |||
| Fibre unit diameter | ø1.3×2 | |||
| Shape | Straight | |||
| Minimum bend radius | R2 mm0.079″ Tough-Flex | |||
| Minimum detectable object | Gold wire with a diameter of 0.005 mm0.0002″ *2 | |||
| Environmental resistance | Ambient temperature | -40 to +50 °C -40 to 122 °F | ||
| Weight | Approx. 6 g | |||
Additional information
| Weight | 0,06 kg |
|---|---|
| Dimensions | 1 × 0,13 × 3 cm |
