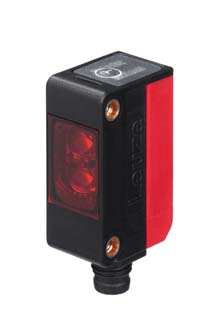

FT5.3/4P-M8, Leuze, Difuso reflectivo, Sensor, 0 … 0.28 m, 10-30VDC, LED, Rojo.
Description
| Series | 5 |
| Operating principle | Diffuse reflection principle |
| Operating range | Guaranteed operating range |
| Operating range, white 90% | 0.001 … 0.215 m |
| Operating range, gray 50% | 0.001 … 0.19 m |
| Operating range, gray 18% | 0.003 … 0.15 m |
| Operating range, black 6% | 0.003 … 0.125 m |
| Operating range limit, white 90% | 0 … 0.28 m |
| Operating range limit, gray 50% | 0.001 … 0.245 m |
| Operating range limit, gray 18% | 0.003 … 0.19 m |
| Operating range limit, black 6% | 0.001 … 0.16 m |
| Operating range limit | Typical operating range |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Transmitted-signal shape | Pulsed |
| LED group | Exempt group (in acc. with EN 62471) |
| Protective circuit | Polarity reversal protection Short circuit protected |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 20 mA |
Distribuidor Leuze, Argentina, Solicite cotización.
Additional information
| Weight | 0,035 kg |
|---|---|

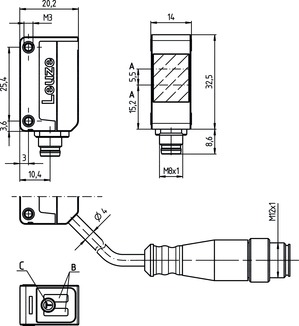

| Dimensions | 2,02 × 1,4 × 3,25 cm |
