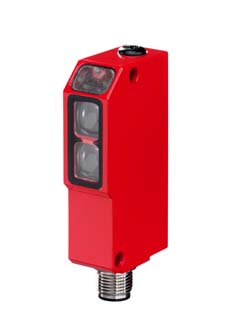

FRK 95/44-150L, LEUZE, Sensor difuso con supresión de fondo, 20 … 230mm, M12,
Description
DATOS BASICOS;
| Series | 95 |
| Operating principle | Diffuse reflection principle with background suppression |
DATOS OPTICOS
| Operating range | Guaranteed operating range |
| Operating range, white 90% | 0.012 … 0.15 m |
| Operating range, gray 18% | 0.015 … 0.143 m |
| Operating range, black 6% | 0.02 … 0.136 m |
| Operating range limit, white 90% | 0.012 … 0.23 m |
| Operating range limit, gray 18% | 0.015 … 0.2 m |
| Operating range limit, black 6% | 0.02 … 0.17 m |
| Operating range limit | Typical operating range |
| Light source | LED, Infrared |
| Wavelength | 880 nm |
| Transmitted-signal shape | Pulsed |
| LED group | 1 |
| Type of light spot geometry | Rectangular |
DATOS ELECTRICOS:
| Protective circuit | Polarity reversal protection Short circuit protected |
ALIMENTACION:
| Supply voltage UB | 10 … 30 V, DC |
| Current consumption, max. | 35 mA |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 35 mA |
SALIDAS
| Number of digital switching outputs | 2 Piece(s) |
| Digital switching output |
Designation
FRK 95/44-150 L FRKR 95/44-150 L FRK 95/22-150 L
Part No.
500 19925 500 25610 500 22794
Mas Información?
Additional information
| Weight | 0,177 kg |
|---|---|
| Dimensions | 4,4 × 2,06 × 7,63 cm |
