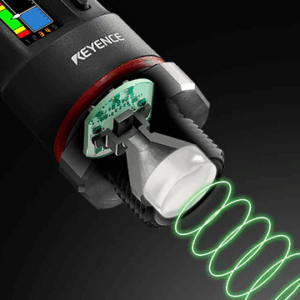

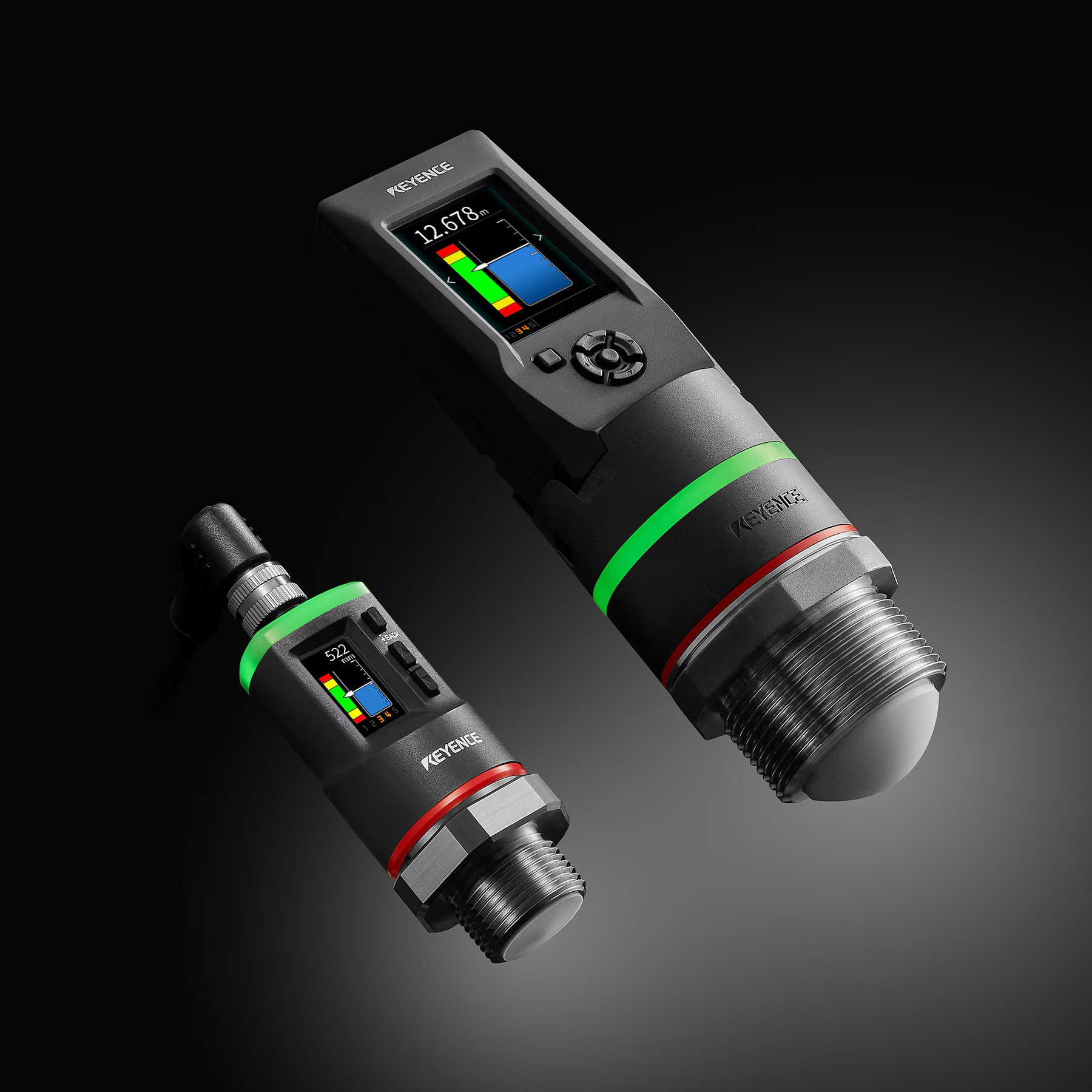

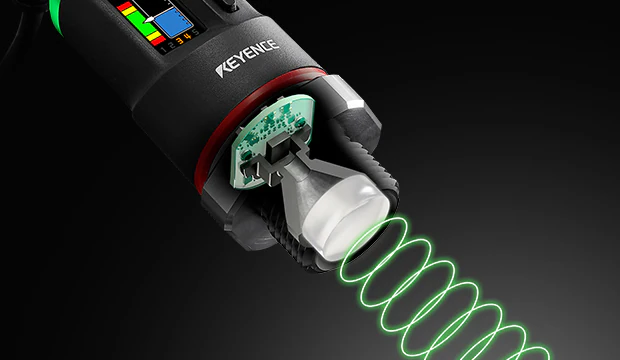

FR-LP20L, KEYENCE, Radar Level Sensor, Unidad principal del sensor de largo alcance Modelo químico
Description
ESPECIFICACIONES
| Model | FR-LP20L | |||
| Type | Long range Chemical model | |||
| Measuring range | Up to 15 m 49.2′*1 | |||
| Display range | Up to 25 m 82.0′*1 | |||
| Measurable dielectric constant of medium | 2 or higher*2 | |||
| Resolution | 1 mm 0.04″ | |||
| Precision | Up to 0.1 m 0.3′: ±10 mm 0.39″; 0.1 to 10 m 0.3′ to 32.8′ : ±1 mm 0.04″; 10 to 15 m 32.8′ to 49.2′: ±2 mm 0.08″ *3 |
|||
| Response time | 0.4 s, 1.5 s, 4 s (default value), 10 s | |||
| Tank pressure | -0.1 to +0.1 Mpa | |||
| Material | Tank interior | Lens: PTFE Internal packing: FKM Joint: PPS |
||
| Housing | PPS PPSU | |||
| Connection diameter | G1-1/2 (40 A) | |||
| Output | No. of control outputs | Maximum 5 | ||
| Control output/auxiliary output | NPN/PNP open collector (switching type) 30 VDC or less, max 50 mA for each Residual voltage of 1.4 V or less (50 mA or less) N.O./N.C. Switching type IO2 is switchable to IO-Link |
|||
| Analog output | 0–20 mA/4–20 mA maximum load resistance 260 Ω (Response time: 0.2 s after judgment output is confirmed [90% response]) |
|||
| External input | ─ | |||
| Network compatibility | IO-Link v1.1/COM2 | |||
| Analog output accuracy | Resolution | 1 mm 0.04″*4 | ||
| Zero accuracy | ±0.1 mA (zero point = 4 mA)*4 | |||
| F.S. accuracy | ±0.2 mA (full-scale = 20 mA)*4 | |||
| Power supply | Power voltage | 24 VDC + 25%/–20% Including ripple Class 2 or LPS |
||
| Power consumption | 98 mA or less (Excluding Load Current) | |||
| Environmental resistance | Ambient temperature | Display part when combined and separated: –10 to +50°C 14°F to 122°F (no freezing)*5*6 Head when separated: –10 to +60°C 14°F to 140°F (no freezing)*5*6 |
||
| Relative humidity | Up to 85% RH (no condensation) | |||
| Temperature of coupling used | –10 to +85°C 14°F to 185°F (no freezing)*5*6 | |||
| Vibration resistance | 10–500 Hz Power spectral density: 0.816 G2; X, Y and Z directions | |||
| Shock resistance | 100 m/s2 (10 G), 16 ms pulses, 1000 times each for X, Y and Z directions | |||
| Enclosure rating | IP67 (IEC60529), Enclosure Type 4X (NEMA250) | |||
| Protection circuit | Protection against reverse power connection, power supply surges, output overcurrent protection, and output surges | |||
| Weight | Approx. 400 g 14.11 oz | |||
Mas Información,? Rittal, Argentina, ventas.
Additional information
| Weight | 0,400 kg |
|---|
