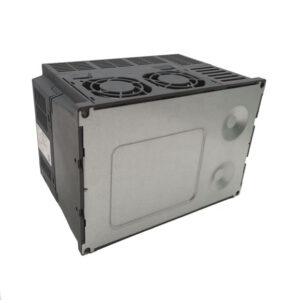

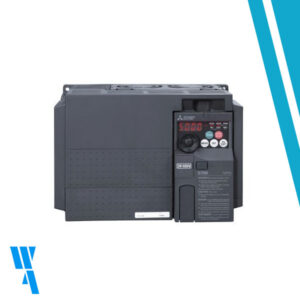

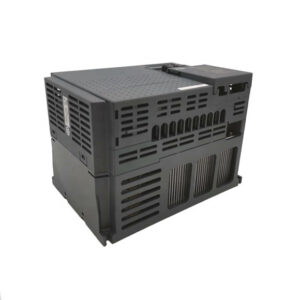

FR-E740-5.5K CHT, Mitsubishi, Inversor, Serie E700, Capacidad nominal (kVA): 9,1 · Corriente nominal (A): 12 · Corriente de sobrecarga nominal: 150 % 60 s, 200 %
Description
FA-Inverter: Inverter
Series FR-E700 SERIES
Type FR-E700 STANDARD INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 325
Maximum Rated Voltage (V) 480
Max. Permissible Voltage (V) 528
Current Type AC: Phases 3
Rated Output Current ND (A) 12
Rated Motor Capacity ND (kW) 5,5
Control Method V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR
Brake Chopper ED (%) 30
Integrated EMC Filter NO
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display BUILT-IN
Display Type 4 DIGITS LED
PLC Function NO
Integrated Digital Inputs 6
Digital Outputs (Transistor) 2
Digital Outputs (Relay) 1
Integrated Analogue Inputs 2
Integrated Analogue Outputs 1
IO Type of Terminal Block SCREW
Expandable YES
RS-485 1
USB 1
Built-In Network MODBUS-RTU
Leakage Current (mA) 1
Power Loss ND (W) 310
Standby Power Consumption (W) 11,6
Protection Class IP20
Conformity
Mas información?
INVERTER FR-E700-SC(-EC)(-NA)/NF/NC
Safety Stop Function Instruction Manual
Safety Stop Function Instruction Manual
Additional information
| Weight | 3,5 kg |
|---|---|
| Dimensions | 9 × 15,7 × 16 cm |
