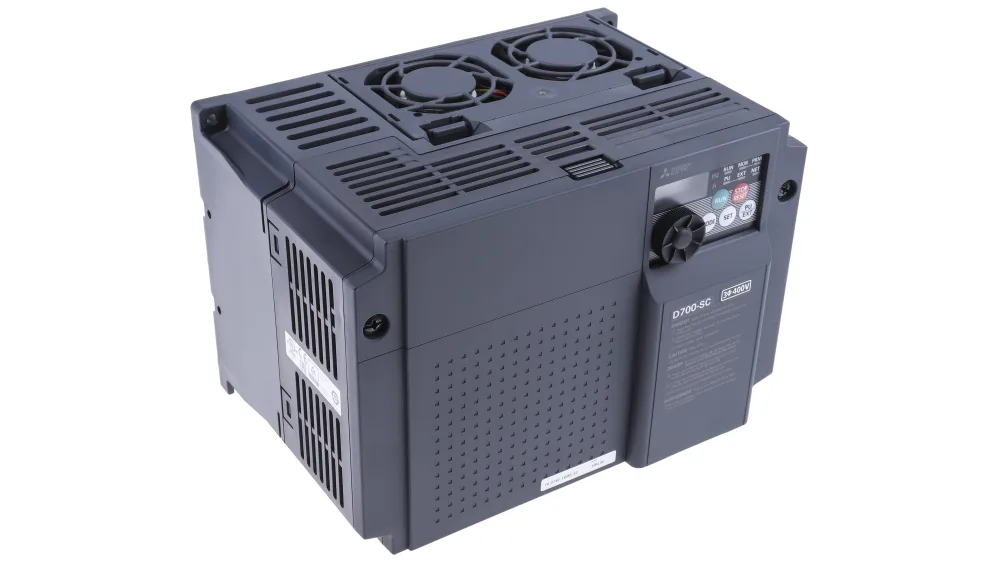

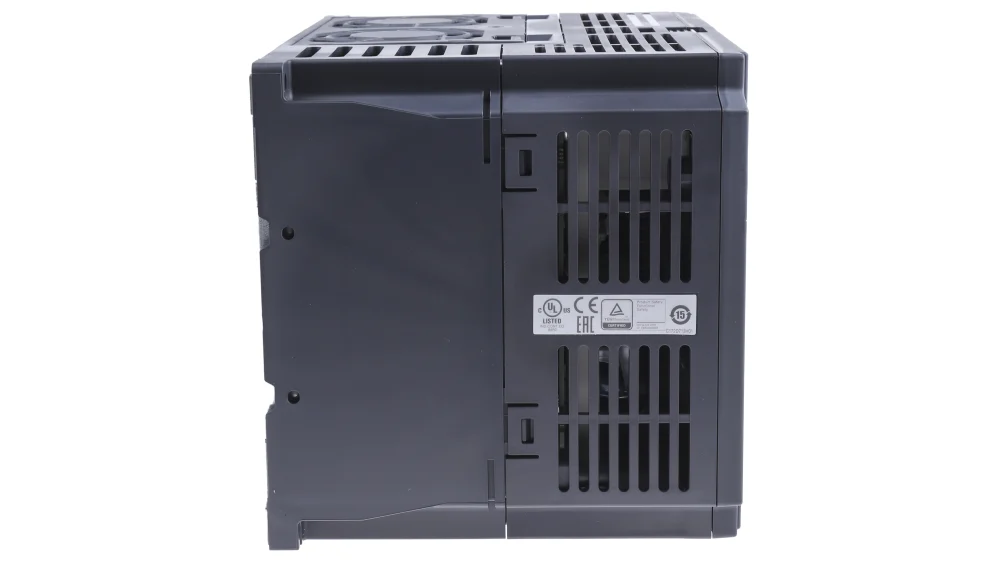

FR-D740-160-EC, MITSUBISHI, Inverter, Rated Power: 7,5kW; 3×380-480V; Rated Current: 16A@50°C; IP20
Description
FA-Inverter:
Inverter
Series FR-D700 SERIES
Type FR-D700 COMPACT INVERTER
Minimum Rated Voltage (V): 380
Min. Permissible Voltage (V): 325
Maximum Rated Voltage (V): 480
Max. Permissible Voltage (V): 528
Current Type: AC
Phases: 3
Rated Output Current ND (A): 16
Rated Motor Capacity ND (kW): 7,5
Frequency Range (Hz) 0,2–400
Control Method V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR
Brake Chopper ED (%): 30
Integrated EMC Filter NO
Safe Torque Off (STO): YES
Regenerative (4Q): NO
Integrated DC Choke: NO
Display BUILT-IN
Display Type 4 DIGITS LED
PLC Function: NO
Integrated Digital Inputs: 5
Digital Outputs (Transistor) 1
Digital Outputs (Relay) 1
Integrated Analogue Inputs 2
Integrated Analogue Outputs 1
IO Type of Terminal Block SPRING CLAMP
Expandable NO
RS-485 1
USB: NO
Ethernet Port NO
Built-In Network MODBUS-RTU
Leakage Current (mA) 1
Power Loss ND (W) 280
Standby Power Consumption (W) 13,5-22,5
Protection Class IP20
Mas Información?
Additional information
| Weight | 3,1 kg |
|---|---|
| Dimensions | 15,5 × 22,0 × 15,0 cm |
