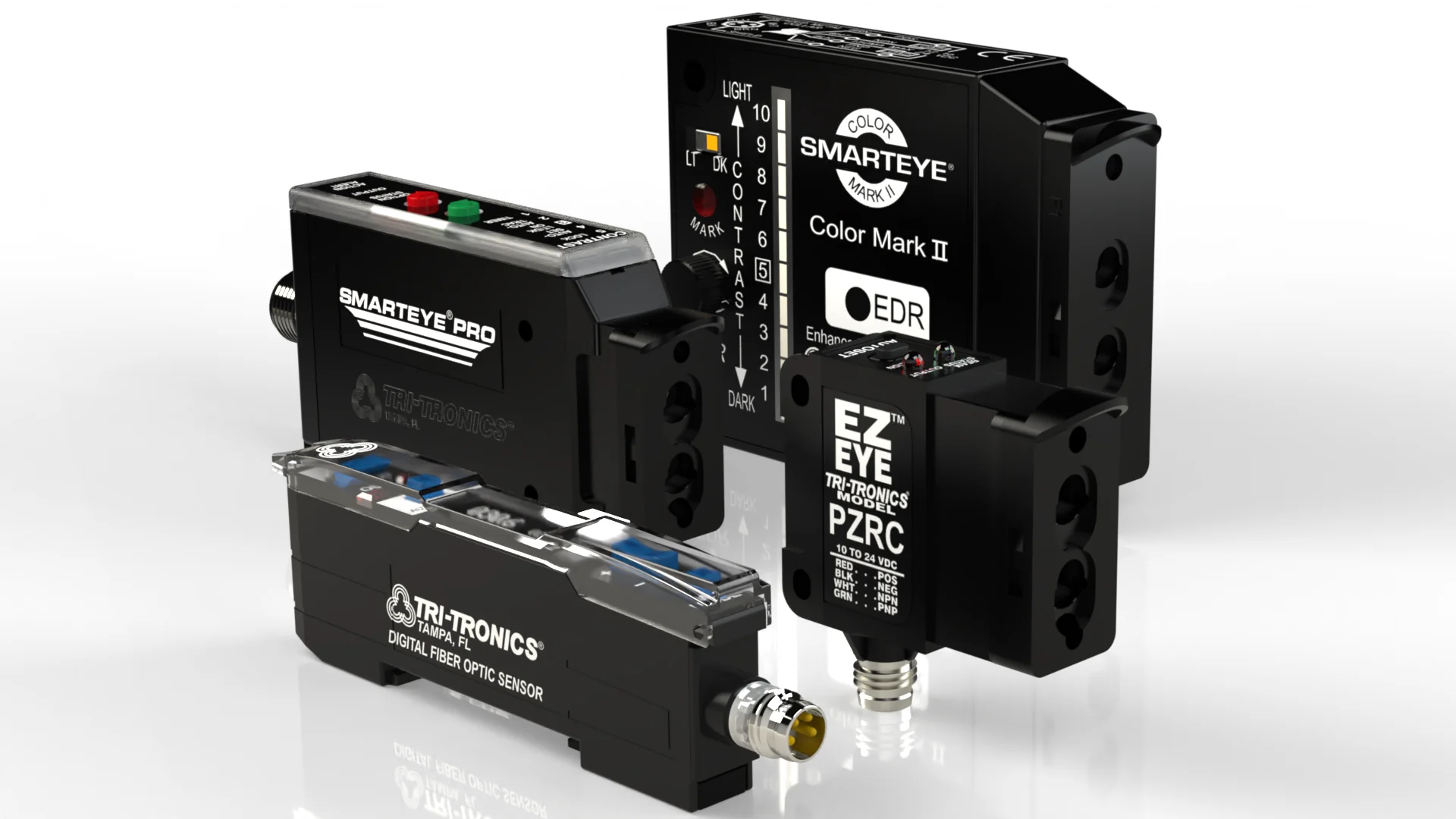

• Push Button

Connection Type:

• Connector, 5-pin M12

Housing Type:

• DIN Rail

Optical Block:

• Type F5, Plastic Fiberoptics
  Adapter for use with a wide variety of plastic fiberoptic light guides for both the proximity and opposed sensing modes.

• Red = 660nm
  Best choice for use with plastic fiberoptic light guides. Useful when sensing translucent objects in proximity (Beam Make) mode. Useful when sensing transparent objects in fiberoptic retroreflective (Beam Break) mode. Can be polarized for retroreflective (Beam Break) sensing to reduce proxing on shiny objects. Opposed fiberoptic light guides can be polarized for sensing some translucent plastic containers; consult factory for details. Used as red filter for color perception advantages.

Sensing Range:

• Opposed Mode with F4: 9in.
• Opposed Mode with F4 and lens: 6ft.
• Opposed Mode with F4 and right angle lens: 3ft.
• Proximity Mode with F4: 7in. using a .040in diameter fiber bundle
• Proximity Mode with F4 and lens: 1ft. using a .040in diameter fiber bundle

• 10 to 30 VDC
• Polarity Protected

Current Requirements:

• 45mA (exclusive of load)

Output Transistors:

• (1) NPN and (1) PNP sensor output transistor
• Sensor outputs can sink or source up to 150mA (current limited)
• All outputs are continuously short circuit protected

Response Time

• Light/Dark state response = 300 microseconds

Hysteresis:

• «Factory-set» for high resolution – less than one bar on the Contrast Indicator

Pushbutton Control:

• Yellow/Blue – AUTOSET
• Manual Adjustments
• Set status of three options: 5) Lock, 4) Auto-Trac, 3) Timers: 10ms, 25ms, 50ms

• 5-LED bar graph functions in one of two modes:
  1. Contrast Indicator – displays scaled reading of sensor’s response to contrasting light levels (light to dark)
  2. Status Indicator – Displays status of 5 selectable options:
  Red LED output indicator = Illuminates when the sensor’s output transistors are “on.” NOTE: If Output LED flashes, a short circuit condition exists
  Amber LED = Illuminates when in the options select mode
  Yellow LED = Illuminates when action alert is activated. Also indicates when ACT adjusts sensor

Light Immunity:

• Responds to sensor’s pulse modulated light source, resulting in high immunity to most ambient light, including indirect sunlight or strobes

Ambient Temperature:

• -40°C to 70°C (-40°F to158°F)

Rugged Construction:

• Chemical resistant, high-impact polycarbonate housing
• Waterproof ratings: NEMA 6 and IP67
• Conforms to heavy industry grade CE requirements
