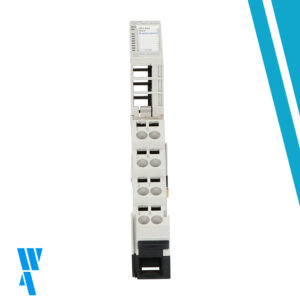

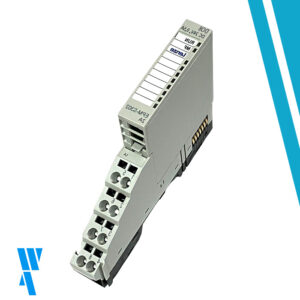

EPM-S302, Lenze, Digital I /O compound modules − digital I/O Four digital outputs 0.5 A

Technical data

EPM−S301 / EPM−S304 (NPN): rated data

Module identifier

Current consumption/power loss

Current consumption from backplane bus

Power loss

Digital outputs

Number of outputs Cable length

shielded

unshielded Load voltage

Nominal value

Current consumption from load voltage L+

Total current

for each group, horizontal structure, 40°C

for each group, horizontal structure, 60°C

for each group, vertical structure Output voltage

for «1» signal, max. current

for «1» signal, min. current Output current

for «1» signal, nominal value Output delay

from «0» to «1»

from «1» to «0» Lamp load

Parallel switching of outputs for redundant control for power increase

Control of a digital input Switching frequencies

for ohmic loads for inductive loads for lamp loads

Limitation (internal) of the inductive breaking voltage

Short circuit protection of the output

Operating threshold of the protection system

Output data size

EPM−S301: 260dec; EPM−S304: 261dec

EPM−S301: 55 mA; EPM−S304: 65 mA 0.5 W

4

1000 m 600 m

DC 24 (DC 20.4 … 28.8 V)

EPM−S301: 10 mA (without load); EPM−S304: 5 mA (without load)

2 A 2 A 2 A

Only for EPM−S304: M (+250 mV) Only for EPM−S304: M (+0 V)

0.5 A

30 ms
EPM−S301: 175 ms; EPM−S304: 100 ms 10 W

Not possible Not possible Possible

Max. 1000 Hz
Max. 0.5 Hz
Max. 10 Hz
EPM−S301: L+ (−52 V); EPM−S304: +45 V

Electronically
EPM−S301: 1 A; EPM−S304: 1.7 A

8 bits (with EPM−S110: 4 bits)
