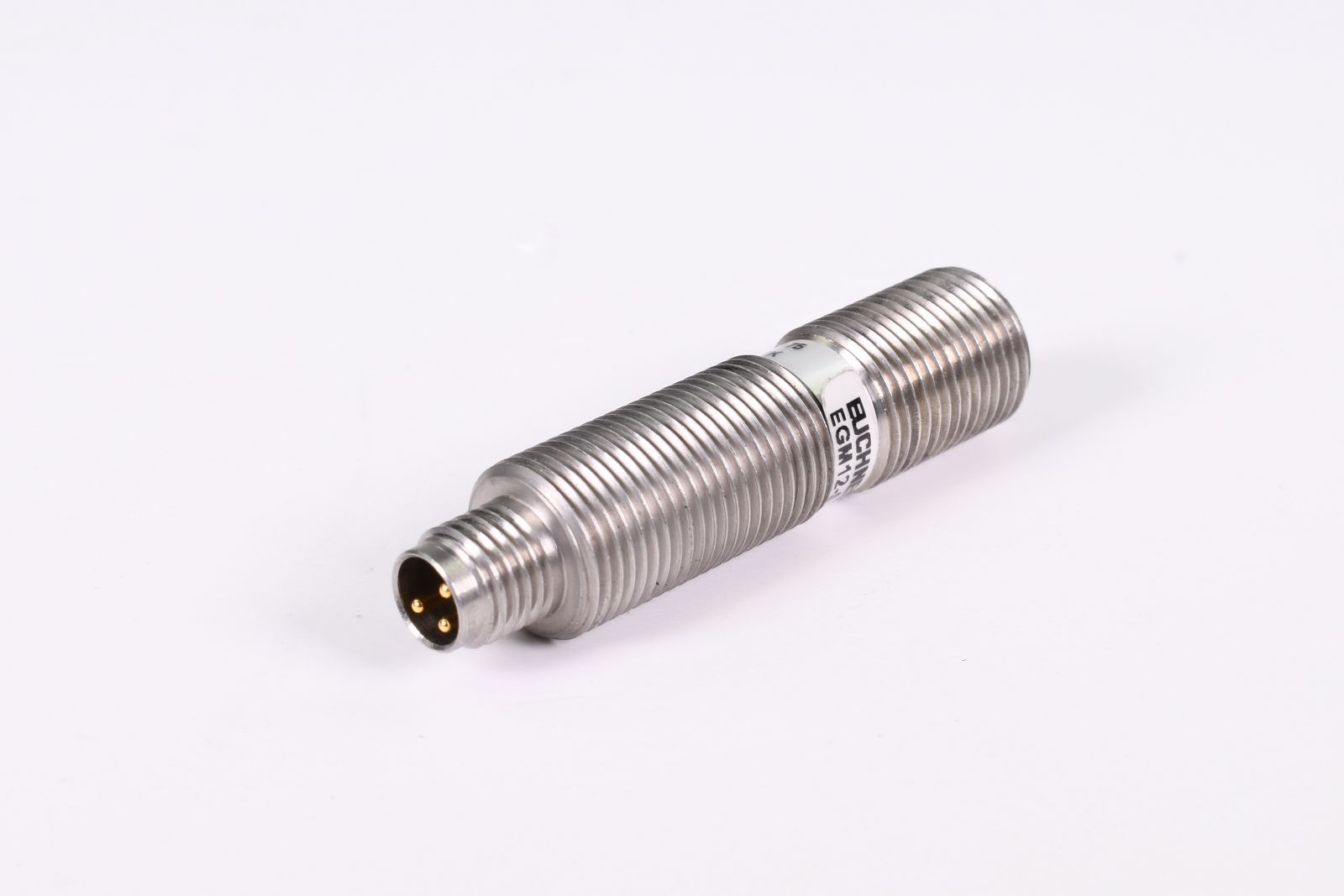

EGM12SAM3C1868, EUCHNER, Interruptor de límite de fijación de precisión de un solo orificio, acero inoxidable, EGM12, Contacto de conmutación de acción rápida, 1 contacto normalmente abierto (NO)
Description
Electrical connection values
| Fuse | max. 2 A gG |
| Rated insulation voltage Ui | 50 V |
| Rated impulse voltage Uimp | 1.5 kV |
| Utilization category | |
| DC-13 | 0.6 A 24 V |
| AC-15 | 0.5 A 24 V |
| Switching voltage | |
| min. | 12 V |
| Switching current | |

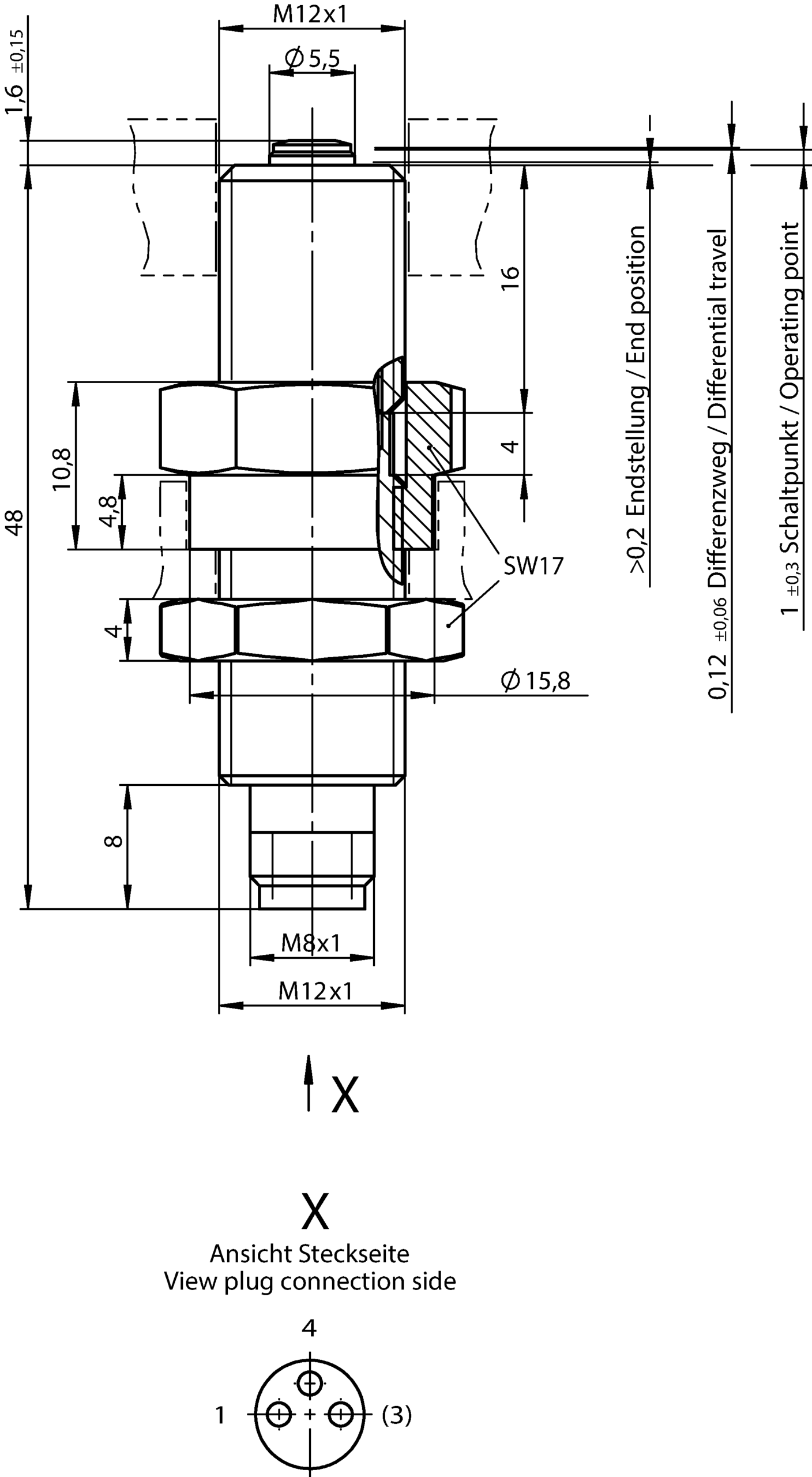

| min. at 24 V | 10 mA |
Mechanical values and environment
| Anfahrgeschwindigkeit | 0.01 … 8 m/min |
| Connection type | 1 x plug connector M8, 3-pin |
| Number of NO contacts | 1 |
| Design | Thread M12 x 1 |
| Actuating element | Flat plunger |
| Actuating force | 16 N |
| Installation orientation | any |
| Storage temperature | -25 … 85 °C |
| Mechanical life | 1 x 10⁶ |
| Switching principle | Snap-action switching contact |
| Degree of protection | IP65 |
| Ambient temperature | -20 … 85 °C |
| Material | |
| Contact | Silver alloy, gold plated |
| Housing | stainless steel |
| Repeat accuracy (absolute) | ±0.01 mm |
Miscellaneous
| C number | |
| C1868 | Special wiring |
Mas Información? Proveedor Euchner, Argentina, Asistencia tecnica y ventas,
>>MAN_Manual-de-instrucciones-Final-de-carrera-e…_ES_3740710_MAN20001598
Additional information
| Weight | 0,056 kg |
|---|---|
| Dimensions | 4,8 × 1,2 × 1,2 cm |
