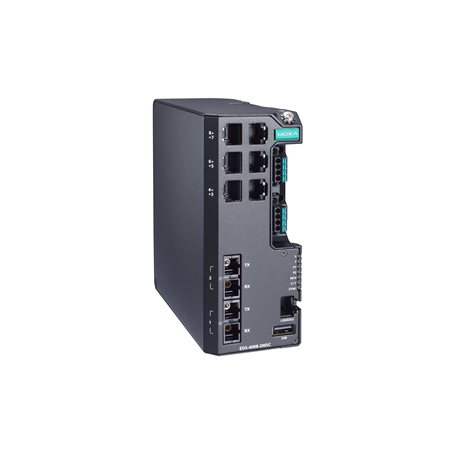

EDS-4008-2MSC-LV, MOXA, Conmutador Ethernet, administrado con 6 puertos 10/100BaseT(X), 2 puertos multimodo 100BaseFX con conectores SC, fuente de alimentación dual 12/24/48 VCC, -10 a 60 °C
Características y ventajas
Turbo Ring y Turbo Chain (tiempo de recuperación < 20 ms a 250 switches) y RSTP/STP para redundancia de red
Compatibilidad con IEEE 802.3bt PoE para una salida de hasta 90 W por puerto
Amplia gama de opciones de entrada de alimentación para una implementación flexible
Diseño de carcasa compacto y flexible que se adapta a espacios reducidos
Compatible con MXstudio para una gestión de red industrial sencilla y visualizada
Certificación de seguridad IEC 62443-4-2 de nivel 2
Input/Output Interface
-
Alarm Contact Channels
1, Relay output with current carrying capacity of 1 A @ 24 VDC
-
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA -
Buttons
Reset button
DIP Switch Configuration
-
DIP Switches
Turbo Ring, Master, Coupler, Reserve
Power Parameters
-
Connector
2 removable 4-contact terminal block(s)
-
Pre-installed Power Module
-LV/-LV-T models: PWR-100–LV
-HV/-HV-T models: PWR-105-HV-I
-LVA/-LVA-T models: PWR-101-LV-BP-I
-LVB/-LVB-T models: PWR-103-LV-VB-I -
Note

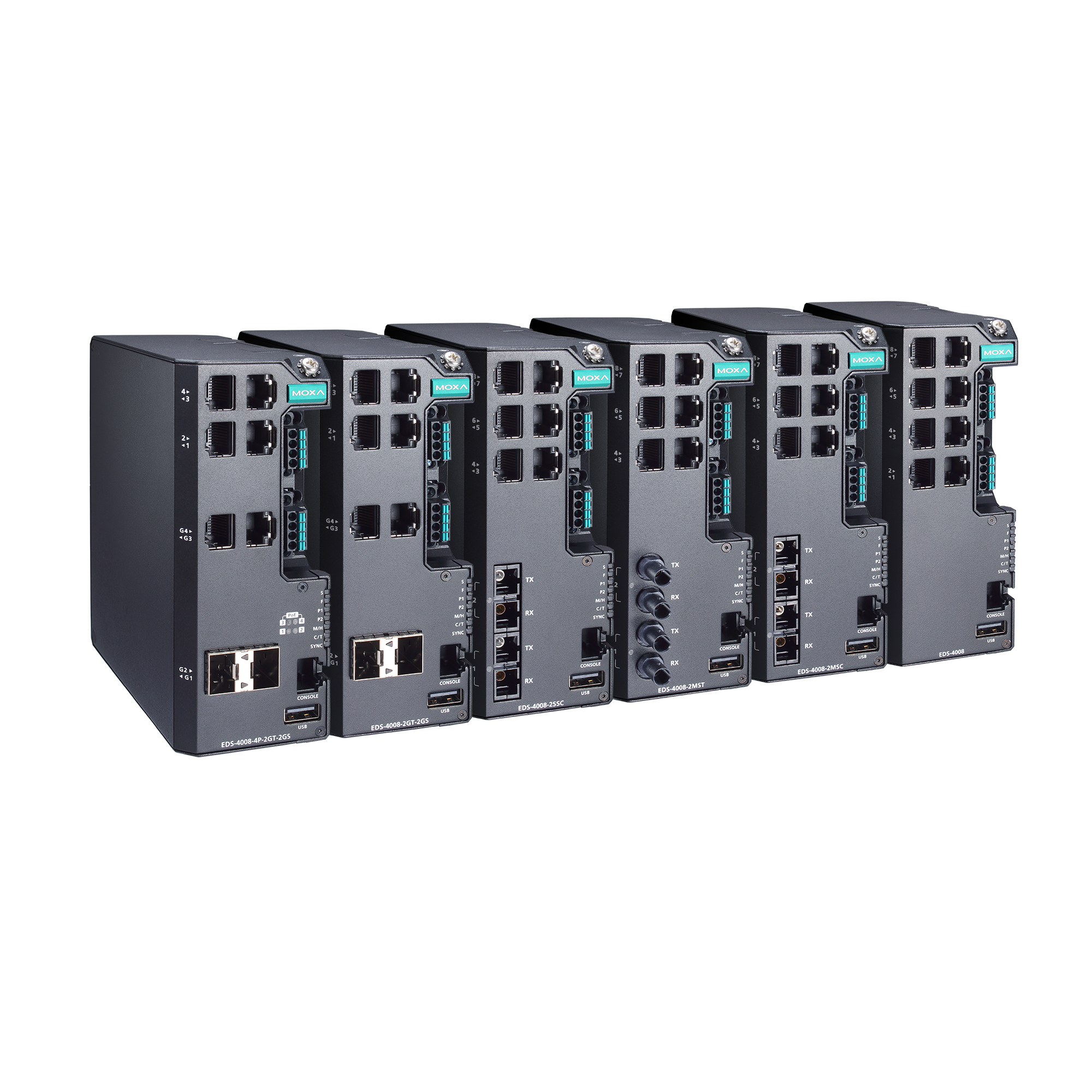

The EDS-4008 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
For example:
EDS-4008-T + PWR-100–LV = EDS-4008-LV-T
EDS-4008-T + PWR-105-HV-I = EDS-4008-HV-TIf you install a different power module, refer to the specifications of the corresponding
model. For example, if you replace the power module of the EDS-4008–LV-T
with the PWR-105–HV-I, refer to the specifications of the EDS-4008–HV-T. -
Power Consumption (Max.)
EDS-4008-LV(-T) models: 7.20 W
EDS-4008-HV(-T) models: 8.13 W
EDS-4008-2MST-LV(-T) models: 8.45 W
EDS-4008-2MST-HV(-T) models: 11.13 W
EDS-4008-2MSC-LV(-T) models: 8.45 W
EDS-4008-2MSC-HV(-T) models: 11.09 W
EDS-4008-2SSC-LV(-T) models: 8.98 W
EDS-4008-2SSC-HV(-T) models: 11.37 W
EDS-4008-2GT-2GS-LV(-T) models: 9.41 W
EDS-4008-2GT-2GS-HV(-T) models: 11.17 WEDS-4008-4P-2GT-2GS-LVA(-T) models:
Without PoE: 11.22 W
With PoE: Max. 240 W for total PD power consumption @ 48 VDC inputEDS-4008-4P-2GT-2GS-LVB(-T) models:
Without PoE: 15.84 W
With PoE:
Max. 180 W for total PD power consumption @ 48 VDC input;
Max. 150 W for total PD power consumption @ 24 VDC input;
Max. 62 W for total PD power consumption @ 12 VDC inputWeight
EDS-4008(-T) models: 857 g (1.89 lb)
EDS-4008-2MSC(-T) models: 886 g (1.95 lb)
EDS-4008-2MST(-T) models: 810 g (1.79 lb)
EDS-4008-2SSC(-T) models: 882 g (1.94 lb)
EDS-4008-2GT-2GS(-T) models: 795 g (1.75 lb)
EDS-4008-4P-2GT-2GS(-T) models: 840 g (1.85 lb)Installation
DIN-rail mounting
Wall mounting (with optional kit)
-
Housing
Metal
Environmental Limits
-
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) -
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
| Weight | 0,886 kg |
|---|
