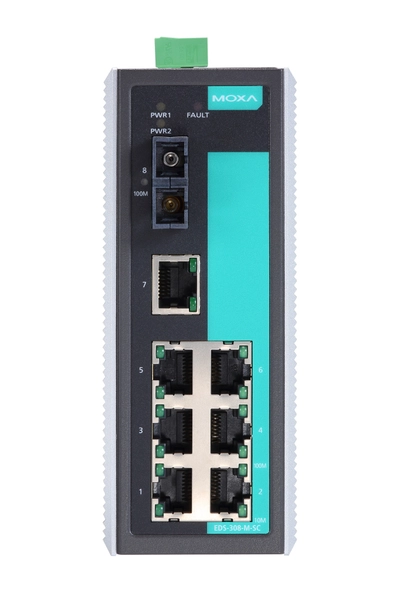

EDS-308-S-SC, MOXA, Conmutador Modem, Ethernet, no administrado con 7 puertos 10/100BaseT(X), 1 puerto monomodo 100BaseFX con conector SC, advertencia de salida de relé, temperatura de funcionamiento de 0 a 60 °C
Input/Output Interface
Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface: 10/100BaseT(X) Ports (RJ45 connector), 7
Auto negotiation speed: Full/Half duplex mode
Auto MDI/MDI-X connection: 100BaseFX Ports (single-mode SC connector), 1
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Optical Fiber
Read more
DIP Switch Configuration
Ethernet Interface: Port break alarm
Switch Properties: MAC Table Size: 2 kbits
Packet Buffer Size: 768 K
Processing Type: Store and Forward. Power Parameters
Input Current: 0.12 A @ 24 VDC
Connection: 1 removable 6-contact terminal block(s)
Operating Voltage. 9.6 to 60 VDC
Input Voltage: Redundant dual inputs: 12/24/48 VDC
Reverse Polarity Protection: Supported
Overload Current Protection: Supported
Mas Información? MOXA, Argentina.
| Weight | 0,790 kg |
|---|
