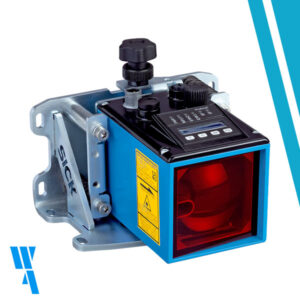

DL100-11AA2112, Sick, Sensor de larga distancia, Reflector, rango de medicion: 0.15 m … 60 m, on Conta reflectiva,»Diamond Grade» | Repeatability: 1.5 mm
Description
| Supply voltage Vs | DC 18 V … 30 V, limit values |
| Ripple | 5 Vpp 1) |
| Initialization time | Typ. 1.5 s 2) |
| Housing material | Metal (Aluminum die cast) |
| Window material | Plastic (PMMA) |
| Connection type | Male connector, M12, SPEEDCON™ compatible |
| Indication | 6 digit 5 x 7 dot matrix display, LEDs |
| Weight | Approx. 800 g (with mounting bracket: approx. 1,600 g) |
| Current consumption | At 24 V DC < 250 mA |
| Dimensions (W x H x D) | 69.4 mm x 82.5 mm x 100.2 mm |
| Modulation frequency | Fix |
| Enclosure rating | IP65 |
| Protection class | III |
1) May not fall short of or exceed VS tolerances.
Optic
| Scope | Indoor |
| Measurement range min … max: | 0.15 m … 60 m, on “diamond grade” reflective tape |
| Target | Reflector |
| Resolution | 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm |
| Repeatability | 1.5 mm, at dead time 10 ms 1)
0.75 mm, at dead time 30 ms 1) |
| Accuracy | ± 3 mm 2) |
| Response time | 2 ms |
| Measurement cycle time | 1 ms |
| Output time | 1 ms |
| Light source | Laser, red 3) visible red light |
| Laser class | 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014) |
| Typ. light spot size (distance) | 5 mm + (2 mm x distance in m) |
| Max. movement speed | 10 m/s |
Comunicacion:
|
|||||||||||||||||||
|
|||||||||||||||||||
| Multifunctional input (MF) | 1 x MF1 3) | ||||||||||||||||||
1) HIGH = > VS – 3 V / LOW = < 2 V.
2) Max. 100 nF/20 mH.
3) HIGH > 12 V / LOW < 3 V.
Mas información?
Additional information
| Weight | 0,800 kg |
|---|---|
| Dimensions | 10,02 × 6,9 × 8,2 cm |
