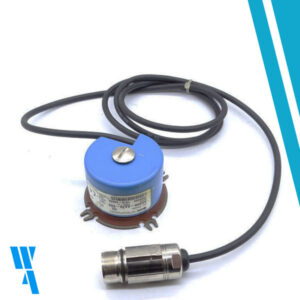

DGS66-CAK01000, Sick, Encoder, codificador DGS 66 con eje hueco ciego, 10 V … 30 V, TTL/RS422
| Mechanical data | |
| Shaft diameter: | 12 mm 1) |
| Moment of inertia of the rotor: | 45 gcm2 |
| Max. angular acceleration: | 5 x 10^5 rad/s2 |
| Start up torque: | 0.4 Ncm (20 °C) |
| Operating torque: | 0.2 Ncm (20 °C) |
| Mechanical interface: | Through hollow shaft |
| Mass: | 0.3 kg |
| Bearing lifetime: | 3.6 x 10^10 revolutions |
| Permissible movement axial static/dynamic: | ± 2 mm, ± 0.2 mm |
| Permissible movement radial static/dynamic: | ± 0.1 mm, ± 0.05 mm |
| Maximum operating speed: | 6,000 1/min |
| 1) Collets for 6, 8, 10, 12, 14, 15 mm and 3/8″ as accessories, separate order item. | |
| Electrical data | |
| Connection type: | Cable, radial, 1.5 m |
| Reference signal, number: | 1 |
| Reference signal, position: | 90 °, electronically, gated with A and B |
| Electrical interface: | 10 V … 30 V, TTL/RS422 |
| Operating power consumption (no load): | 100 mA |
| Supply voltage: | 10 V … 30 V |
| Load current: | 20 mA |
| Maximum output frequency: | 600 kHz |
1032457 DGS66-AAK01024 1032458 DGS66-AAK01250 1032459 DGS66-AAK02000 1032460 DGS66-AAK02048 1032461 DGS66-AAK00250 1032462 DGS66-AAK02500 1032463 DGS66-AAK00360 1032464 DGS66-AAK03600 1032465 DGS66-AAK04096 1032466 DGS66-AAK00500 1032467 DGS66-AAK05000 1032468 DGS66-CAK00100 1032469 DGS66-CAK01000 1032470 DGS66-CAK01024 1032471 DGS66-CAK02000 1032472 DGS66-CAK02048 1032473 DGS66-CAK02500 1032474 DGS66-CAK00360 1032475 DGS66-CAK03600 1032476 DGS66-CAK04096 1032477 DGS66-CAK00500 1032478 DGS66-CAK05000 1032479 DGS66-CAK00512 1032480 DGS66-GAK00100 1032481 DGS66-GAK01000 1032482 DGS66-GAK01024 1032483 DGS66-GAK01250 1032485 DGS66-GAK02000 1032486 DGS66-GAK02048 1032487 DGS66-GAK00250 1032488 DGS66-GAK02500 1032489 DGS66-GAK00360 1032490 DGS66-GAK03600 1032491 DGS66-GAK04096 1032492 DGS66-GAK00500
Mas información?
>>>
| Weight | 0,400 kg |
|---|
