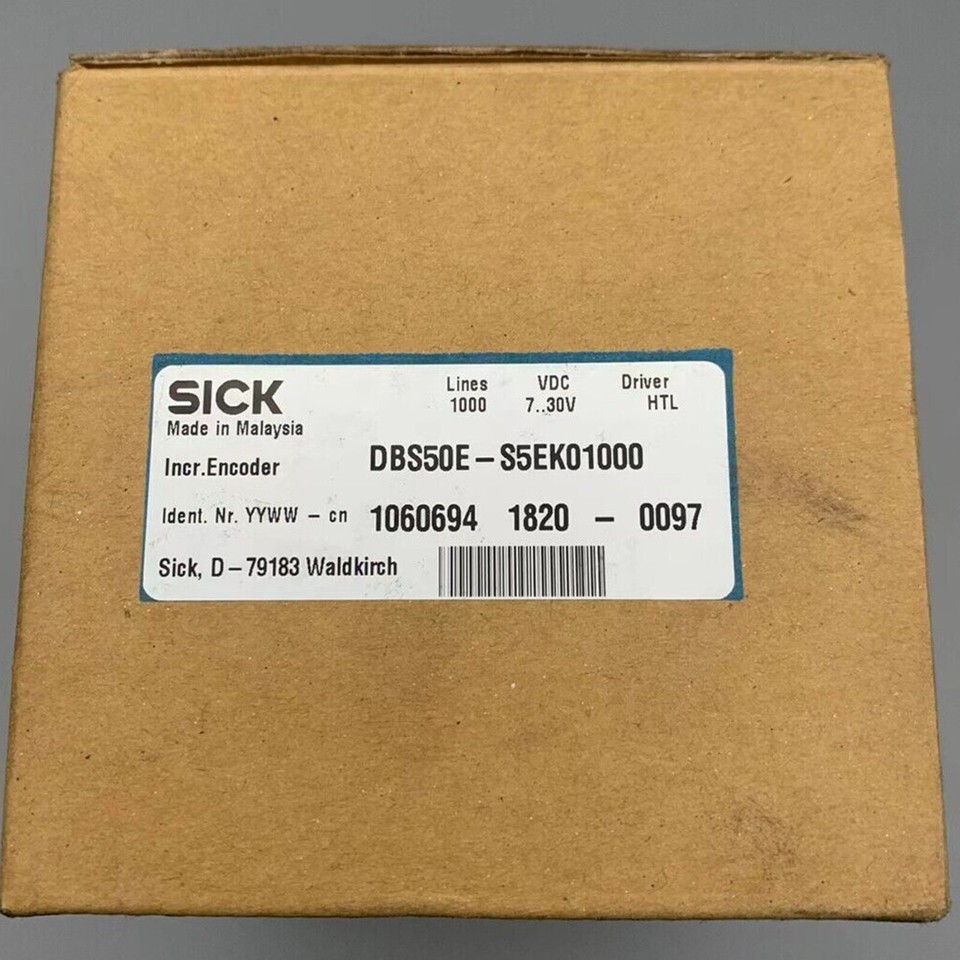

DBS50E-S5EK01000, Sick, Encoder Codificador incremental serie Core, 1000 ppr, señal HTL, tipo sólido, eje de 8 mm.
Description
Caracteristicas:
| Pulses per revolution | 1,000 |
| Measuring step | 90°, electric/pulses per revolution |
| Measuring step deviation | ± 18° / pulses per revolution |
| Error limits | ± 54° / pulses per revolution |
| Duty cycle | ≤ 0.5 ± 5 % |
| Connection type | Cable, 8-wire, universal, 1.5 m |
| Supply voltage | 7 … 30 V |
| Reference signal, number | 1 |
| Reference signal, position | 90°, electric, logically gated with A and B |
| Reverse polarity protection |  |
| Short-circuit protection of the outputs | 1) |
| MTTFd: mean time to dangerous failure | 600 years (EN ISO 13849-1) 2) |
Mas Informacion?
Additional information
| Weight | 0,500 kg |
|---|---|
| Dimensions | 3,55 × 5,8 × 5,8 cm |
