*The TwinCAT 3 platform level defines the exact ordering number for the respective TwinCAT 3 product.
Technical data | CP27xx-0010 | Options |
---|---|---|
Device type | Fanless multi-touch built-in Panel PC | |
Housing | aluminum housing with glass front | stainless steel housing with glass front at 12.1″, 15″, 15.6″, 18.5″ and 21.5″ display |
Slots for hard disk/flash | 2 slots for CFast | |
Installation | pull-out clamping levers for fast installation without loose parts | |
Protection rating | front side IP65, rear side IP20 | |
Operating temperature | 0…55°C | |
Display size/resolution | 12″ 800 x 600, 12.1″ 1280 x 800, 15″ 1024 x 768, 15.6″ 1366 x 768, 18.5″ 1366 x 768, 19″ 1280 x 1024, 21.5″ 1920 x 1080 or 24″ 1920 x 1080 | |
Touch screen | multi-finger touch screen | |
Processor | Intel Atom® E3815, 1.46 GHz, 1 core (TC2, TC3: 40) | up to Intel Atom® E3845 1.91 GHz, 4 cores (TC2, TC3: 50) |
Motherboard | 3½-inch motherboard for Intel Atom® E38xx | |
PCIe/PCI slots | – | 1 PCIe module slot |
Memory | 2 GB DDR3L RAM | up to 8 GB DDR3L RAM ex factory |
Ethernet | 2 x 100/1000BASE-T on-board | 1 additional 100/1000BASE-T |
Hard disks/flash | 40 GB CFast | up to 320 GB CFast |
Interfaces | 4 x USB 2.0, 1 x DVI | 1 x USB in the front |
Power supply | 24 V DC | UPS |
Operating system | Windows Embedded Compact 7, English | Windows Embedded Standard 7, Windows 10 IoT Enterprise |

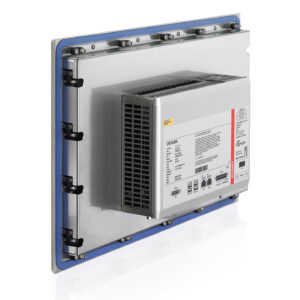

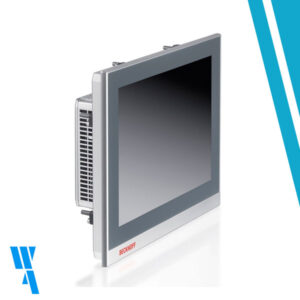

CP27xx-0010 | Fanless multi-touch built-in Panel PC |
---|---|
CP2712-0010 | 12-inch display 800 x 600, multi-finger touch screen |
CP2713-0010 | 12.1-inch display 1280 x 800, multi-finger touch screen |
CP2715-0010 | 15-inch display 1024 x 768, multi-finger touch screen |
CP2716-0010 | 15.6-inch display 1366 x 768, multi-finger touch screen |
CP2718-0010 | 18.5-inch display 1366 x 768, multi-finger touch screen |
CP2719-0010 | 19-inch display 1280 x 1024, multi-finger touch screen |
CP2721-0010 | 21.5-inch display 1920 x 1080, multi-finger touch screen |
CP2724-0010 | 24-inch display 1920 x 1080, multi-finger touch screen |
