C23-1224-5M-P, BASLER, Lente, objetivo Basler Premium con montura C, con una distancia focal fija de 12 mm, rango de apertura de F2.4 a F16 y una resolución de 5 MP.
Description
Características principales:
Compatible con todas las cámaras Basler con un sensor de hasta 2/3″
Carcasa metálica
Montura C
Tornillos de bloqueo para iris y enfoque
Indicadores de apertura en el anillo del iris y el cuerpo del objetivo
Alto contraste
General Specifications:
| C23-1224-5M-P | |
|---|---|
| Order Number | 2200000569 |
| Focal Length f’ | 12.01 mm ± 5 % |
| Aperture Range | F2.4–F16 |
| Aperture with Highest Resolution | F3.0 |
| Image Circle | 11 mm (2/3″ format) |
| Focus Range | 0.15 m to infinity |
| Optimum Working Distance | 0.3 m |
| Relative Illumination at Full Aperture | 66 % |
| Resolution | Designed for 147 LP/mm (3.40 µm pixel size, see Resolution versus Image Height) |

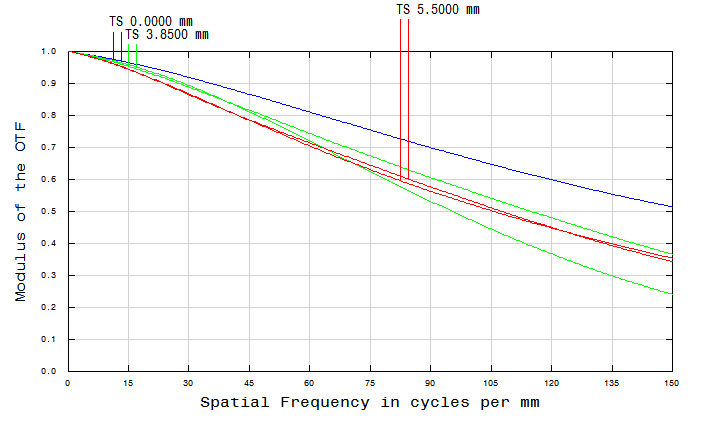

| MTF Measured in the Center at 90 LP/mm / 140 LP/mm (conditions: F2.4, polychromatic, 0.45 m working distance) | 0.65 / 0.51 |
| MTF Measured in the Corner at 90 LP/mm / 140 LP/mm (conditions: F2.4, polychromatic, 0.45 m working distance) | 0.41 / 0.2 |
| Optical Distortion | Typical -0.25 % |
| Angle of View, 1/1.8″ Format | Horizontal: 33.3° Vertical: 25.0° |
| Angle of View, 2/3″ Format | Horizontal: 40.3° Vertical: 30.8° |
| Wavelength Range | Visible (400–700 nm) |
| Back Focal Length, s’F | 15.56 mm |
Mechanical Specifications
| C23-1224-5M-P | |
|---|---|
| Flange Back | 17.526 mm |
| Mount | C-mount |
| Weight | Approx. 71.1 g |
| Focus/Iris Operation | Manual |
Mas Información?
Catalogo.
Additional information
| Weight | 0,071 kg |
|---|
