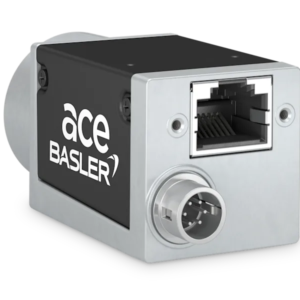

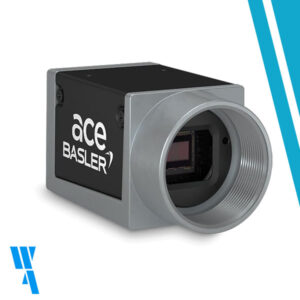

acA1300-60gmNIR, ACE, Basler ace Classic, Camara con e2v EV76C661 CMOS sensor
$4.255.710 +IVA
Description
EV76C661 Sensor
60 fps Frame rate
GigE Interface
1.3 MP Resolution (MP)
1/1.8″ Sensor Format
General Information
Order Number 106202
Product Family ace Classic
Product Line ace Classic
Camera Category Area Scan Camera
Sensor
Sensor Vendor e2v
Sensor EV76C661
Shutter Global & Rolling Shutter
Sensor Format 1/1.8″
Sensor Diagonal 8.68 mm
Sensor Type CMOS
Sensor Size 6.8 mm × 5.4 mm
Resolution (H x V) 1280 px × 1024 px
Resolution (MP) 1.3 MP
Pixel Size (H x V) 5.3 μm × 5.3 μm
Frame rate 60 fps
Mono/Color Mono
Spectrum Visible + NIR
EMVA Data
Quantum Efficiency (typical/minimal) 59 % (typical)
Dark Noise (typical/maximal) 23.2 e¯ (typical)
Saturation Capacity (typical/minimal) 7.4 ke¯ (typical)
Dynamic Range (typical/minimal) 50.1 dB (typical)
Signal-to-Noise Ratio (typical/minimal) 38.7 dB (typical)
Camera Data
Interface GigE
Image Data Interface Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s)
Pixel Bit Depth 12 bits
Synchronization
Ethernet connection
free-run
hardware trigger
Exposure Control programmable via the camera API
Digital Input 1
Digital Output 1
Power Supply PoE or 12 VDC
Power Requirements (typical) 2 W
Power Consumption PoE 2.6 W
Housing
Housing Type Box
Housing Size (L x W x H) 42 mm x 29 mm x 29 mm
Weight 90 g
Lens Mount C-mount
Operating Temperature 0 °C – 50 °C
