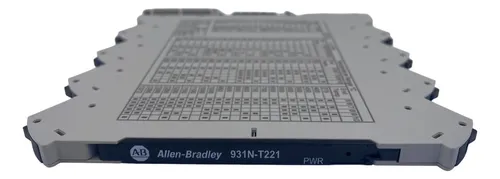

931N-T221, Allen Bradley, Entrada Termocupla, TC (Tipo J y K)/CJC interno/CJC externo a salida analógica; Monocanal; 24 VCC;
Description
Technical specifications for 931N-T221
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Signal Conditioner |
| Product Line | Signal Conditioners |
| Part Number | 931N-T221 |
| Weight | 1.00 lbs (0.45 kg) |
| UPC | 191326317955 |
| Input Type | Thermocouple type |
| Input Temperature Range (Type J) | Up to +1200 °C |
| Input Temperature Range (Type K) | Up to +1372 °C |
| Minimum Measurement Span | 50 °C |
| Output Current Signal | 0-20 mA, 4-20 mA |
| Output Voltage Signal | 0-5V, 1-5V, 0-10V, 2-10V |
| Power Supply | 24 VDC |
| Minimum Power Supply Value | 16.8 V |
| Maximum Power Supply Value | 31.2 V |
| Galvanic Isolation | Up to 2.5 kV AC |
| Mounting Type | DIN Rail |
| Number of Channels | 1 input channel, 1 output channel |
