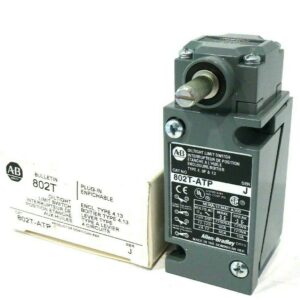

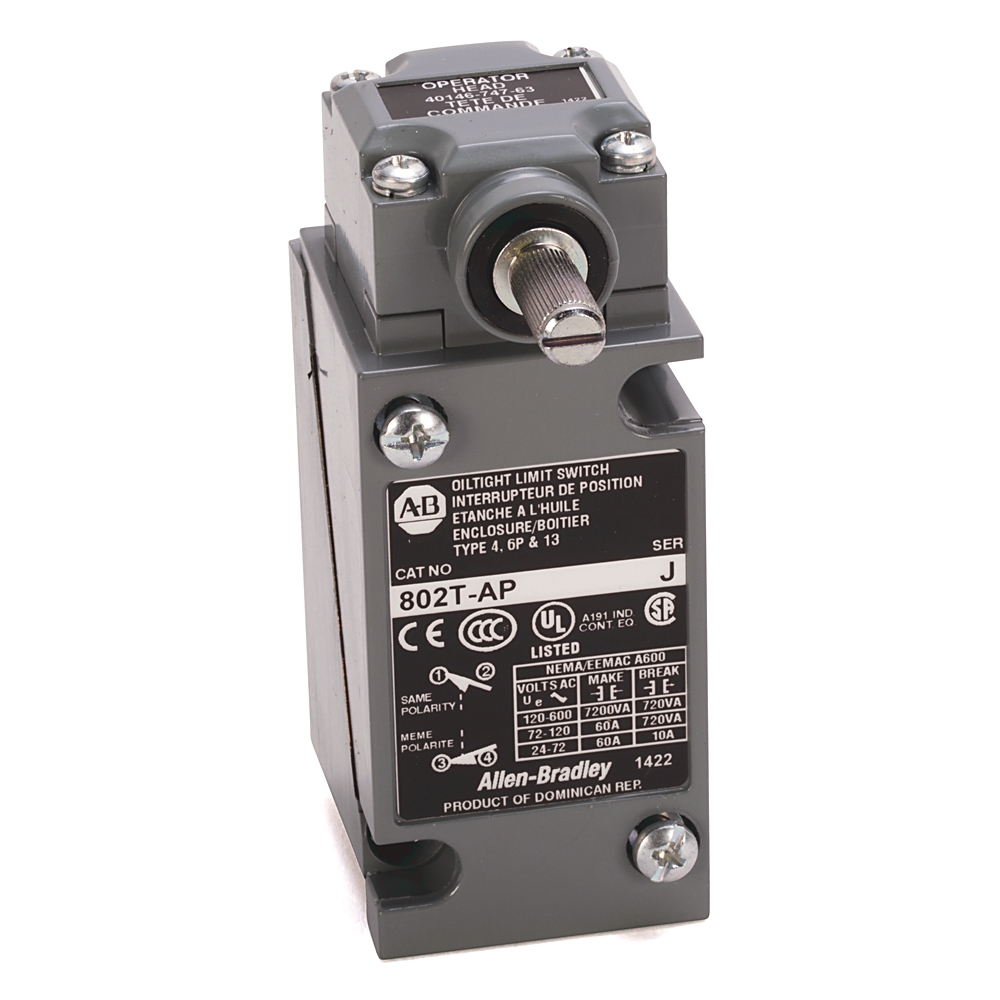

802T-AP, Allen Braldley, Limit Switch, NEMA Type 4 and 13 Oiltight Construction, Plug-In, Lever Type, Spring Return, Standard Operating Torque, 2-Circui
Actuation Type :Lever Type, Spring Return, Standard Operating Torque ; Actuator :Rotary Lever Arm ; Manufacturer Name :Rockwell Automation
Descripción: El 802T-AP es parte del interruptor de límite hermético al aceite estilo enchufable 802T. Este interruptor es un interruptor de 2 circuitos con contactos de dos polos y dos tiros (DPDT) con clasificación de 120 VCA – 600 VCA con clasificación de contacto de cierre de 7200 VA y clasificación de contacto de apertura de 720 VA; 72-120 VCA con clasificación de contacto de cierre de 60 amperios y clasificación de contacto de apertura de 720 VA; 24-72 VCA con clasificación de contacto de cierre de 60 amperios y clasificación de contacto de apertura de 10 amperios. Este interruptor admite la operación en sentido horario y antihorario.
Technical Specifications for 802T-AP
| Brand | Allen-Bradley / Rockwell Automation |
| Manufacturer: | Rockwell Automation |
| Manufacturer | Allen-Bradley |
| Series | 802T Limit Switches |
| Product Family | Limit Switches |
| Part Number | 802T-AP |
| Brand: | Allen-Bradley |
| Product Family: | Oiltight Limit Switch |
| Product category | Plug-in Style Oiltight Switches |
| Product Description | Oiltight Limit Switch |
| Certifications | UL Listed, CSA Certified, and CE Marked for applicable directives |
| Part Number/Catalog No. | 802T-AP |
| Part Number: | 802T-AP |
| Mounting Orientation | Horizontal |
| No. of circuits | Two (2) |
| Operating voltage: | 120-600 VAC; |
| Continuous Current capacity: | NEMA Designation AC600 AC-15 / AC300: 10 A NEMA Designation BC600 AC-15: 5 A |
| Number of Circuits | 4 |
| Enclosure Type Rating | NEMA 4, 13, 6P, and IP67 |
| Contact rating: | 115-125 VDC: 0.4 A; 230-250 VDC: 0.2 A; 550-600 VDC: 0.1 A |
| Relative Humidity | 5â95% (nonâcondensing) |
| Pollution Degree | 3 |
| Ambient Temperature | 18…+110° (0…+230°) Exception: Wobble stick and cat whisker devices are rated from -18…+54° (0…+130°) |
| Actuation type: | Lever |
| Environmental Protection Rating | IP67 |
| DC Contact rating | 0.4 Amperes at 115-125 VDC; 0.2 Amperes at 230-250 VDC; 0.1 Amperes at 550-600 VDC |
| No. of circuits: | Two (2) |
| Operating Temperature | -18 to 110 degrees Celsius (0 to 230 degrees Fahrenheit) |
| Spring return: | Yes |
| Mounting | Rear or Front-Mounting Available |
| AC contact continuous current | 10 Amperes |
| Operation: | Clockwise (CW) / Counter-Clockwise (CCW) |
| Maximum Operating Voltage | 600V AC |
| AC contact rating @ 120 VAC | Make: 60 A Break: 6.0 A |
| Maximum travel for actuation: | 13o |
| Maximum Operating Current | 10 A |
| AC contact rating @ 240 VAC | Make: 30 A Break: 3.0 A |
| Maximum travel to reset: | 7o |
| AC contact rating @ 480 VAC | Make: 15 A Break: 1.5 A |
| Operating Torque: | 0.29 N-m (2.5 lb-in) 20-250 Hz |
| AC contact rating @ 600 VAC | Make: 12 A Break: 1.2 A |
| Assembly type: | Plug-in |
The 802T-AP’s DC contact ratings are 0.4 Amperes at 115-125 VDC; 0.2 Amperes at 230-250 VDC and 0.1 Ampere at 550-600 VDC.
