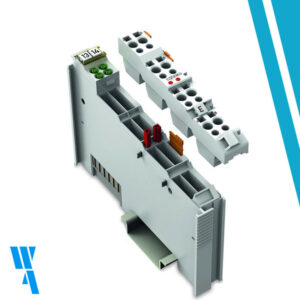

753-402, WAGO, Módulo de entradas digitales de 4 canales. 24 VCC 3 ms
Description
Este módulo de entrada digital recibe señales de control de dispositivos de campo (por ejemplo, sensores).
Cada módulo de entrada tiene un filtro de rechazo de ruido.
Los niveles de campo y sistema están aislados eléctricamente.
Number of digital inputs 4
Total number of channels (module) 4
Signal type Digital
Signal type (voltage) 24 VDC
Sensor supply DC 24 V

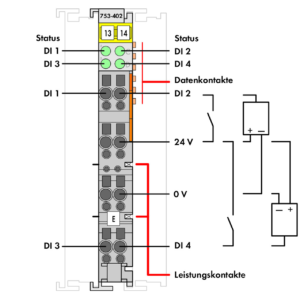

Sensor connection 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors.
Input characteristic high-side switching
Input filter (digital) 3ms
Input current per channel for signal (1) typ. 4.5mA
Voltage range for signal (0) −3 … +5 VDC
Voltage range for signal (1) 15 … 30 VDC
Input data width (internal) max. 4Bit
Supply voltage (system) 5 VDC; via data contacts
Current consumption (5 V system supply) 7.5mA
Supply voltage (field) 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)
Isolation 500 V system/field
Indicators LED (A-D) green: Status DI 1 … DI 4
Number of incoming power jumper contacts 2
Number of outgoing power jumper contacts 2
Current carrying capacity (power jumper contacts) 10A
Wago, proveedor, Argentina,
Mas información?
Additional information
| Weight | 0,045 kg |
|---|---|
| Dimensions | 6,98 × 1,2 × 10 cm |
