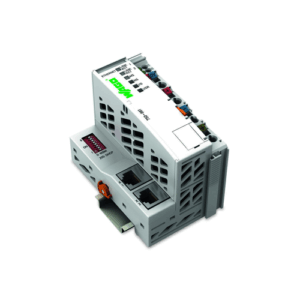

750-881, WAGO, Controlador, ETHERNET, 3rd generation.
Description
Technical data
| CommunicationWAGO_750-881en | EtherNet/IPTM Modbus (TCP, UDP) ETHERNET |
| ETHERNET protocols | HTTP BootP DHCP DNS SNTP FTP SNMP |
| Visualization | Web-Visu |
| CPU | 32 bits |
| Programming languages per IEC 61131-3 | Instruction List (IL) Ladder Diagram (LD) Function Block Diagram (FBD) Continuous Function Chart (CFC) Structured Text (ST) Sequential Function Chart (SFC) |
| Programming environment | WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) |
| Configuration options | WAGO-I/O-CHECK Web-Based Management |
| Transmission rate | 10/100 Mbit/s |
| Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length |
| Transmission performance | Class D per EN 50173 |
| Program memory | 1024 KB |
| Data memory | 512 KB |
| Non-volatile software memory | 32kbyte |
| Number of modules per node (max.) | 250 |
| Number of modules without a bus extension (max.) | 64 |
| Input and output process image (fieldbus) max. | 1020 words/1020 words |

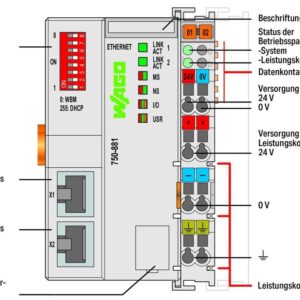

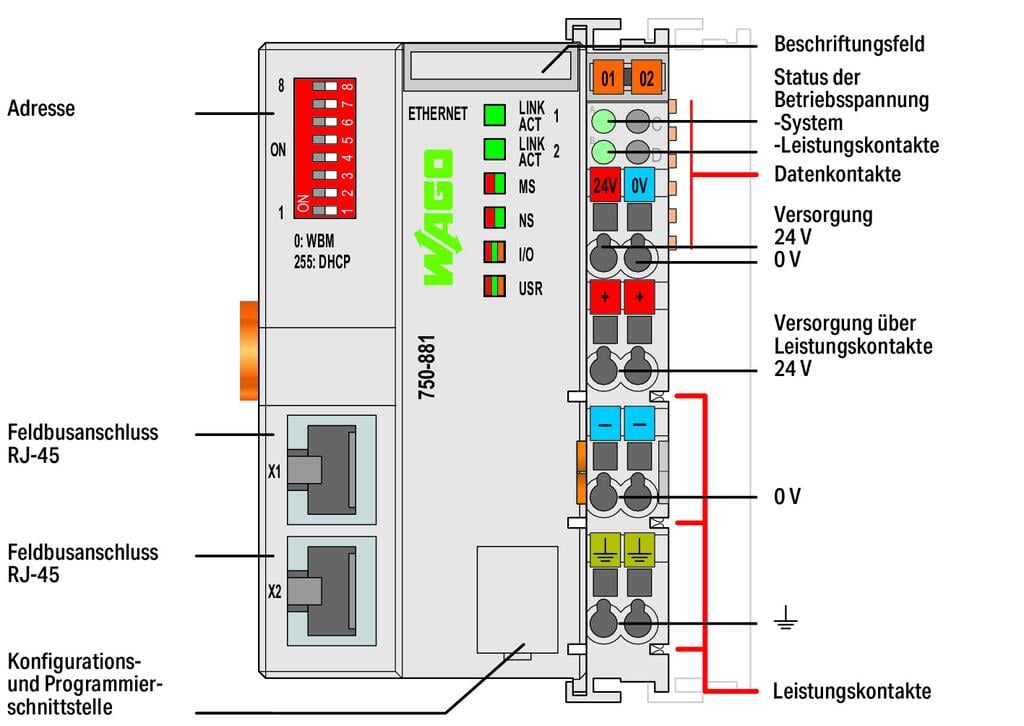

| Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply |
| Supply voltage (system) | 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP®connection) |
| Input current (typ.) at nominal load (24 V) | 500mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 90% |
| Current consumption (5 V system supply) | 450mA |
| Total current (system supply) | 1,700mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts |
| Current carrying capacity (power jumper contacts) | 10A |
| Number of outgoing power jumper contacts | 3 |
| Isolation | 500 V system/field |
Discontinuado por el fabricante,

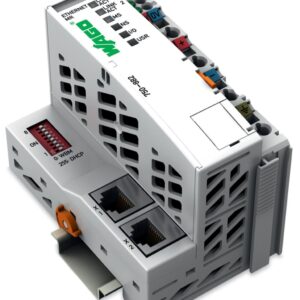

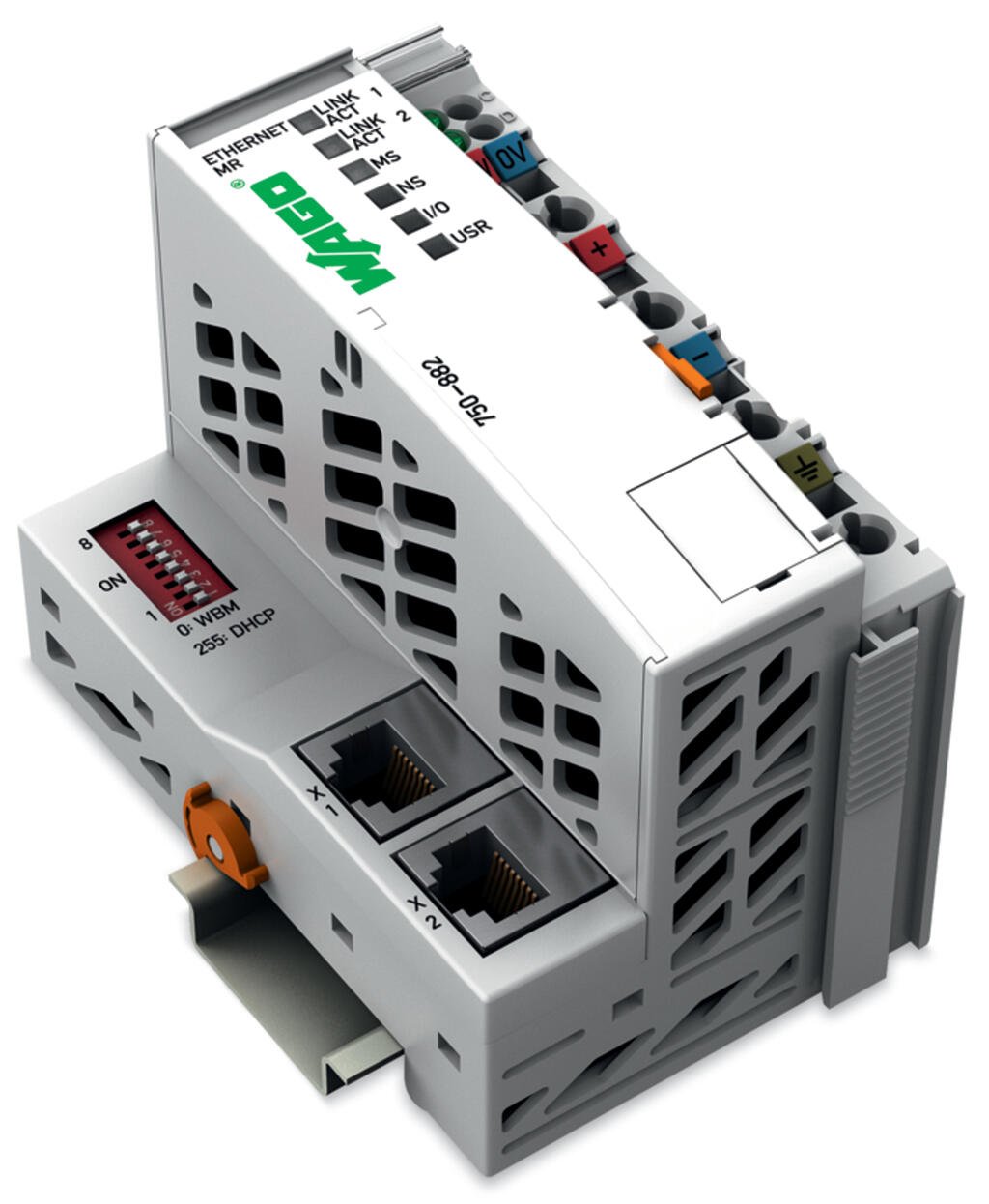

Contáctenos para Reemplazo, (750-882)
Mas Información?
Additional information
| Weight | 0,350 kg |
|---|---|
| Dimensions | 6,2 × 6,5 × 10,0 cm |
