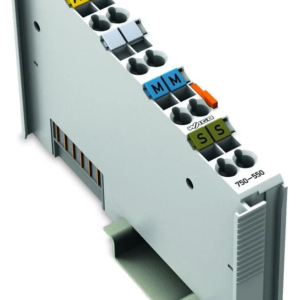

750-550, WAGO, 2-channel analog output, 0 … 10 VDC, light gray
Description
Este módulo de salida analógica genera señales estándar de 0 a 10 V.
La señal de salida está aislada galvánicamente y se transmite con una resolución de 12 bits.
Las salidas están protegidas contra cortocircuitos.
La fuente del sistema interno alimenta el módulo.
Los canales de salida tienen un potencial de tierra común.
Technical data
| Number of analog outputs | 2 |
| Total number of channels (module) | 2 |
| Signal type | Voltage |
| Signal type (voltage) | 0 … 10 VDC |
| Actuator connection | 2 x (2-wire) |
| Resolution [bit] | 12Bit |
| Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
| Load impedance (voltage output) | ≥ 5 kΩ |
| Conversion time (typ.) | 2ms |
| Measurement error (reference temperature) | 25°C |
| Measurement error, deviation (max.) from the upper-range value | 0.1% |
| Temperature error (max.) of the upper-range value | 0.01%/K |
| Output error, reference temperature | |
| Output error, deviation (max.) of the upper-range value | 0.1% |
| Temperature error (max.) of the output range value | 0.01%/K |
| Recovery time (typ.) | 0.3ms |
| Linearity | ±10 mV |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 65mA |
| Isolation | 500 V system/field |
| Indicators | LED (A, C) green: Function AO 1, AO 2 |
Service, WAGO, Argentina reparaciones Electronicas
Mas Informacion?
Additional information
| Weight | 0,050 kg |
|---|---|
| Dimensions | 10,2 × 1,3 × 7,6 cm |
