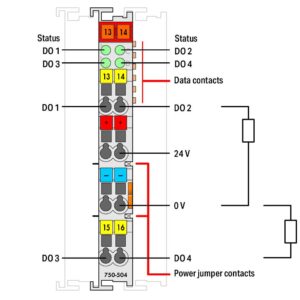

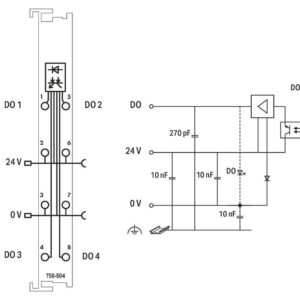

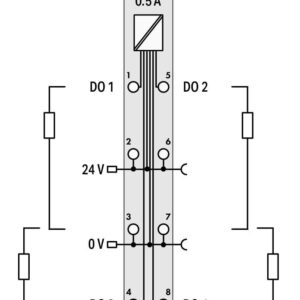

750-504, Wago, 4-canales salida digital; 24 VDC; 0.5 Amp.
Description
Este módulo de salida digital transmite señales de control desde el dispositivo de automatización a los actuadores conectados.
Todas las salidas están protegidas contra cortocircuitos.
Los niveles de campo y sistema están aislados eléctricamente.
Todas las salidas están protegidas contra cortocircuitos.
Los niveles de campo y sistema están aislados eléctricamente.
Technical data
| Number of digital outputs | 4 |
| Total number of channels (module) | 4 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |
| Actuator connection | 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other actuators. |
| Output characteristic | high-side switching |
| Output current per channel | 0.5A |
| Output current | short-circuit-protected |
| Switching frequency (max.) | 1 kHz |
| Load type | Resistive, inductive, lamp load |
| Inductive load switch-off energy dissipation (max.) | 0.3J |
| Output data width (internal) max. | 4Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 10mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact) |
| Current consumption, field supply (module with no external load) | 30mA |
| Isolation | 500 V system/field |
| Indicators | LED (A-D) green: Status DO 1 … DO 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10A |
Mas informacion?
Additional information
| Weight | 0,055 kg |
|---|---|
| Dimensions | 6,4 × 1,2 × 6,4 cm |
