750-452, WAGO, 2-channel analog input; 0 … 20 mA; Differential input; S5 PLC data format
Description
Technical data
| Number of analog inputs | 2 |
| Total number of channels (module) | 2 |
| Signal type | Current |
| Signal type (current) | 0 … 20 mADC |

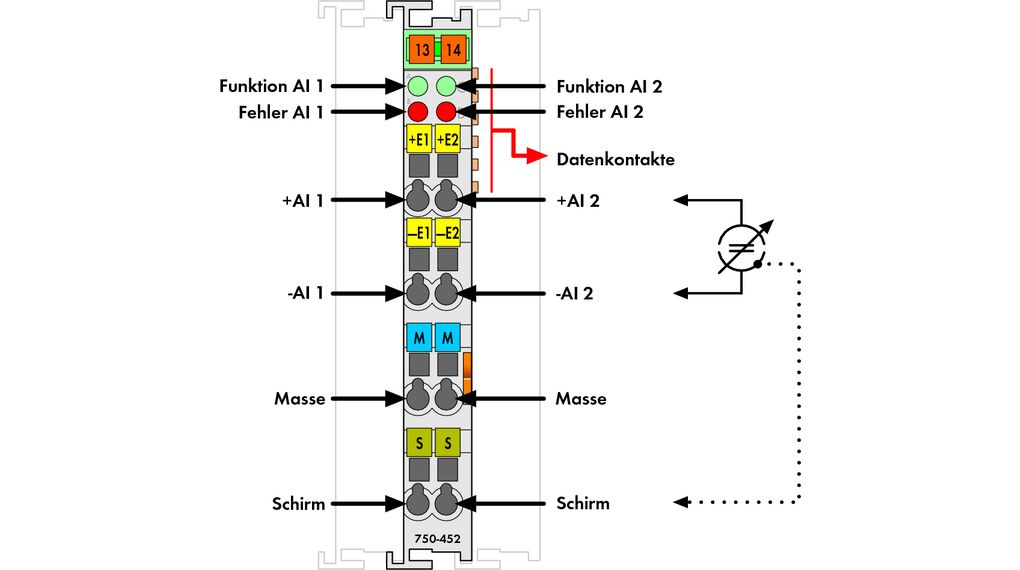

| Sensor connection | 2 x (2-wire) |
| Input voltage (max.) | 35 V |
| Signal characteristics | Differential |
| Resolution [bit] | 12Bit |
| Input resistance (max.) | 220Ω |
| Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
| Conversion time (typ.) | 2ms |
| Measurement error (reference temperature) | 25°C |
| Measurement error, deviation (max.) from the upper-range value | 0.2% |
| Temperature error (max.) of the upper-range value | 0.01%/K |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 70mA |
| Isolation | 500 V system/field |
| Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 |
Mas Información?
Additional information
| Weight | 0,177 kg |
|---|---|
| Dimensions | 6,7 × 1,2 × 11,0 cm |
